F4CE9684L*J601

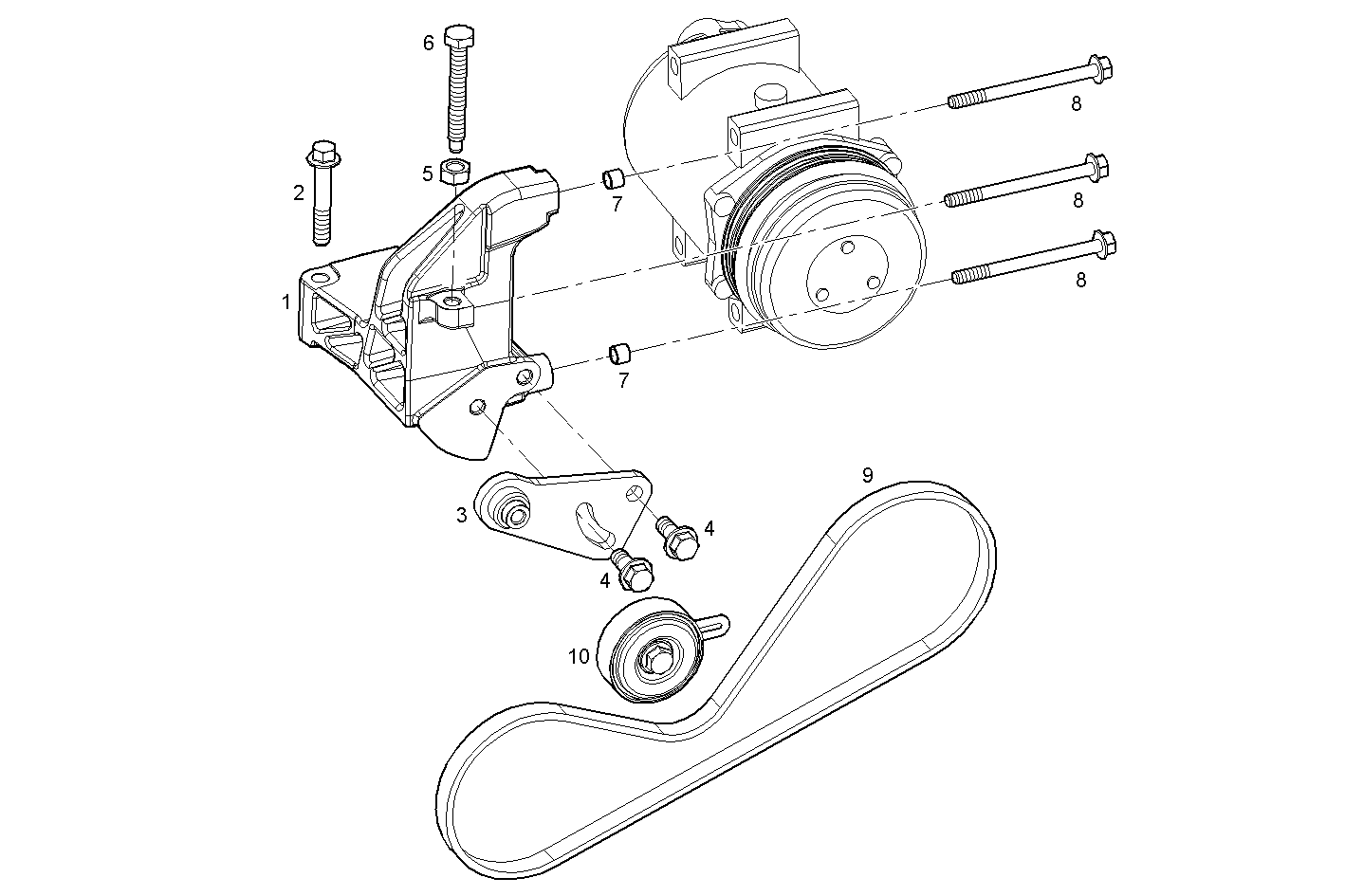

3900.011 COMPRESSOR AIR CONDITIONING - prearrangement
| Item | Part number | Description |
|---|---|---|
| 1 | 504081529 | SUPPORT |
| 2 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
| 3 | 504081525 | BELT TENSIONER |
| 4 | 16587125 | HEXAGON BOLT M10X25 MM |
| 5 | 17038131 | HEXAGON NUT M10 |
| 6 | 504020255 | HEXAGON BOLT |
| 7 | 4895227 | DOWEL PIN |
| 8 | 16598324 | HEXAGON BOLT M8X100 MM |
| 9 | 4899373 | BELT |
| 10 | 504066033 | PULLEY |
