F4CE9684L*J601

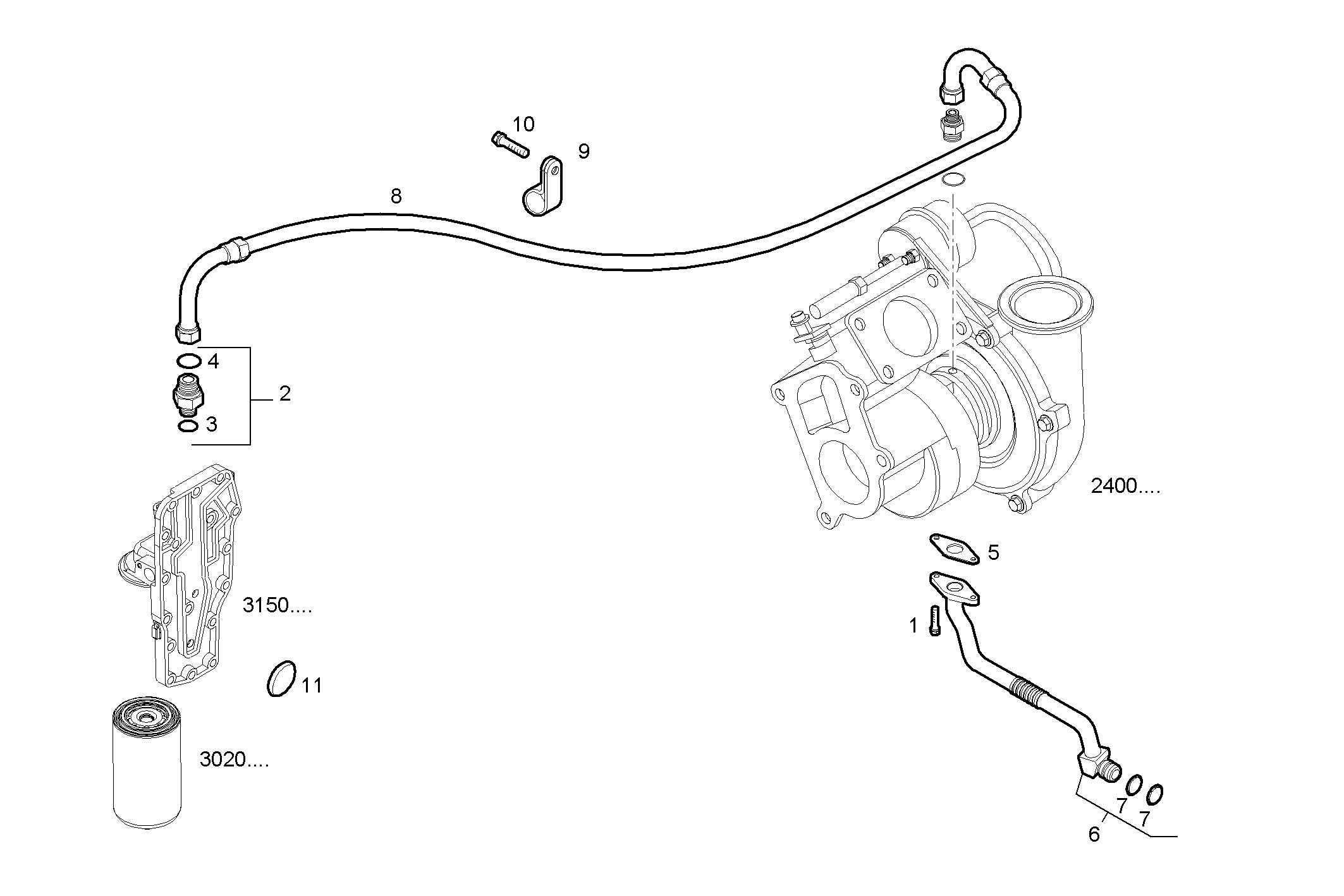

3063.030 TURBOCHARGER OIL LINES [FROM # 572336] [FROM # 572336]
| Item | Part number | Description |
|---|---|---|
| 1 | 4899079 | HEXAGON BOLT |
| 2 | 504329209 | THREADED UNION ASSY |
| 3 | 4895610 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4891288 | FLAT ENGINE GASKET |
| 6 | 504238709 | OIL LINE |
| 7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
| 8 | 504186017 | OIL LINE |
| 9 | 4896893 | CLIP |
| 10 | 16677735 | HEXAGON BOLT M12X25 MM |
| 11 | 4895089 | PLUG |
