F4CE9684N*J600

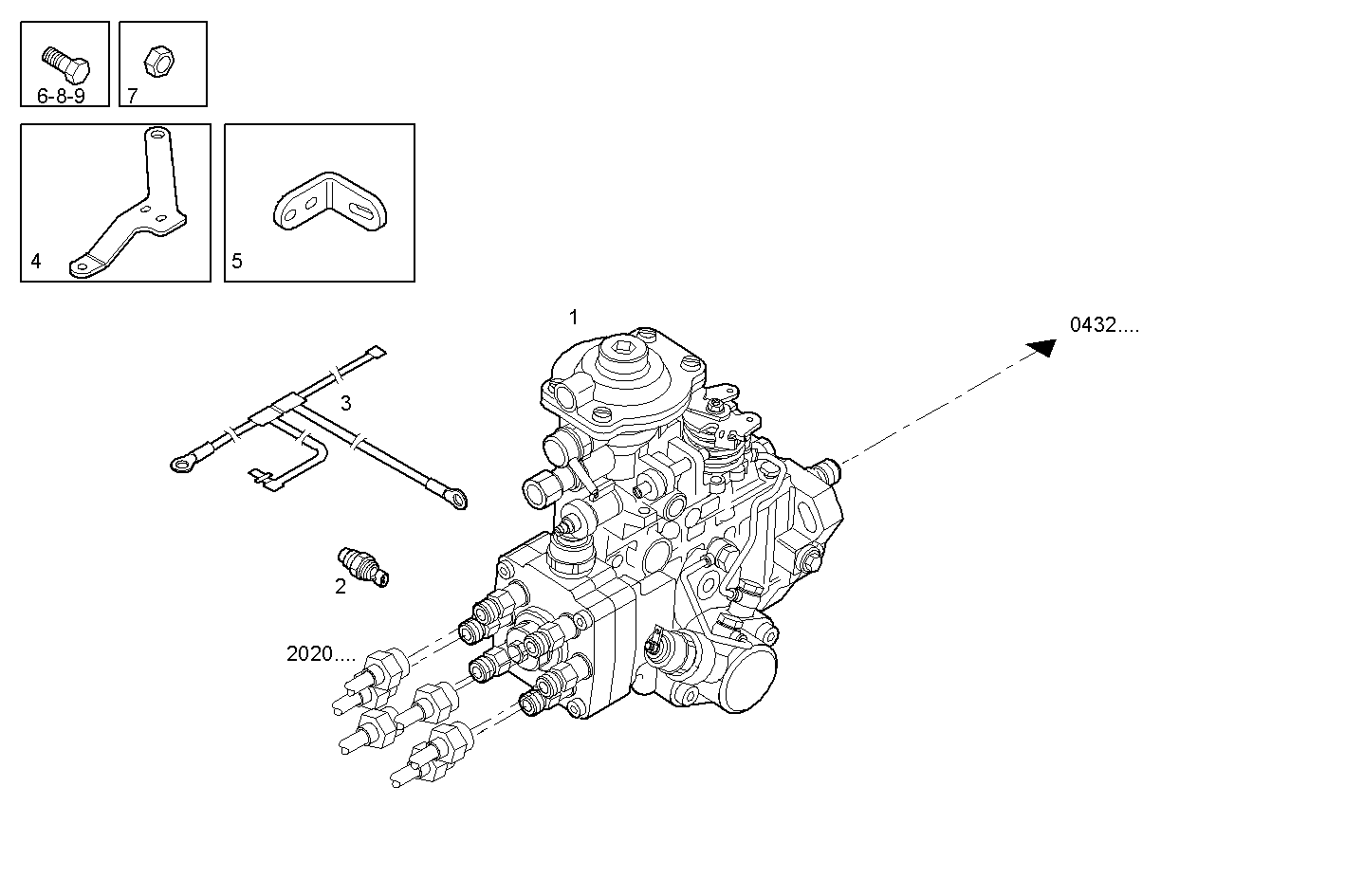

1400.006 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504246241 | DISTRIB.INJ.PUMP |
| 2 | 504032877 | SENSOR water temperature for KSB |
| 3 | 504060728 | WIRE/CABLE for electrovalve & ksb |
| 4 | 504242322 | BRACKET |
| 5 | 2830713 | BRACKET |
| 6 | 4899079 | HEXAGON BOLT |
| 7 | 17044735 | NUT M8 |
| 8 | 4895327 | HEXAGON BOLT |
| 9 | 16673635 | HEXAGON BOLT M8X1.25X20 |
