F4CE9684P*J600

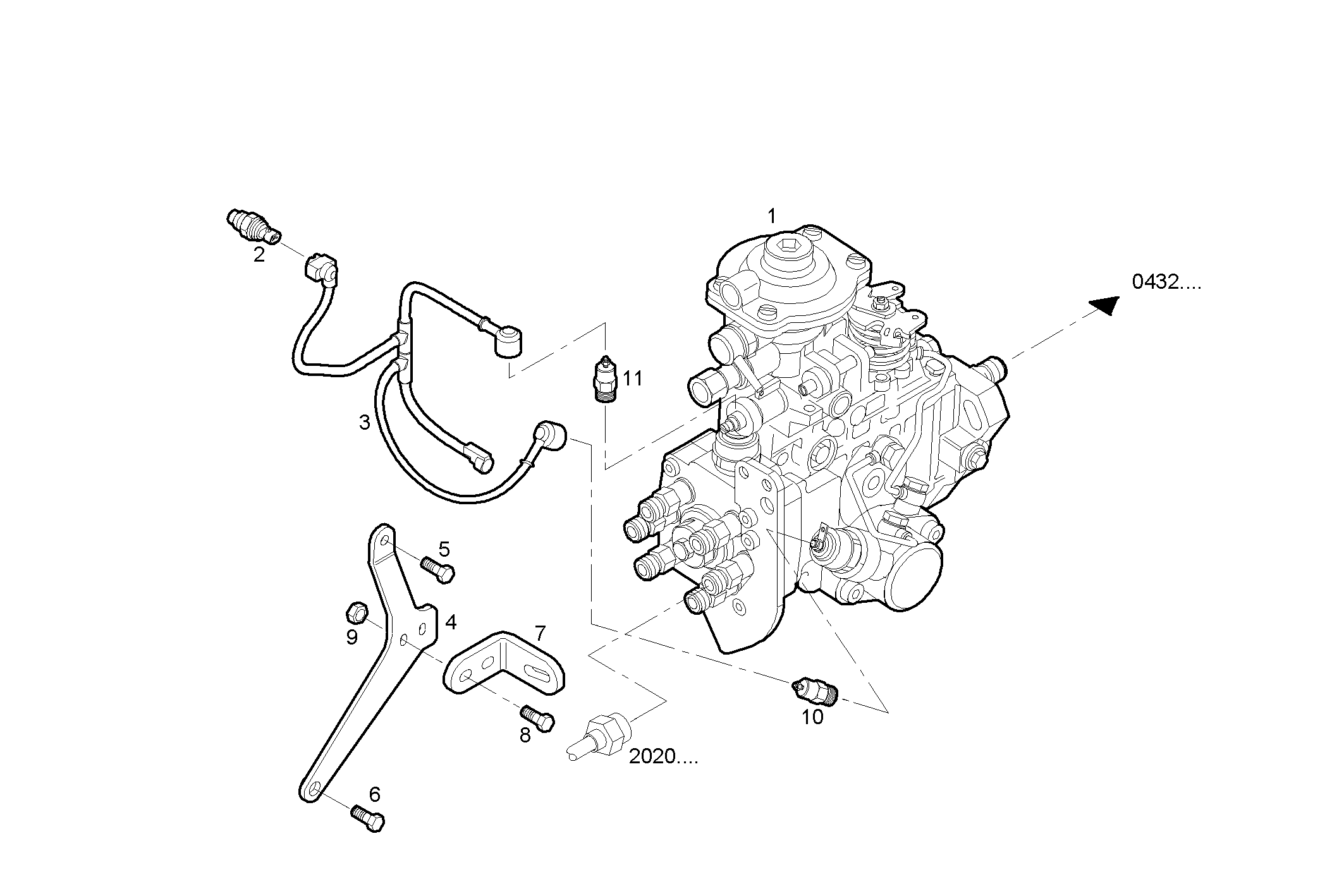

1400.014 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 504246340 | DISTRIB.INJ.PUMP |
2 | 504032877 | SENSOR water temperature for KSB |
3 | 504060728 | WIRE/CABLE for electrovalve & ksb |
4 | 504242322 | BRACKET |
5 | 16673635 | HEXAGON BOLT M8X1.25X20 |
6 | 4895327 | HEXAGON BOLT |
7 | 2830713 | BRACKET |
8 | 4899079 | HEXAGON BOLT |
9 | 17044735 | NUT M8 |
10 | 93192974 | MAGNETO KSB |
11 | 42533181 | ELECTROVALVE 12V |
