F4DE9684A*J102

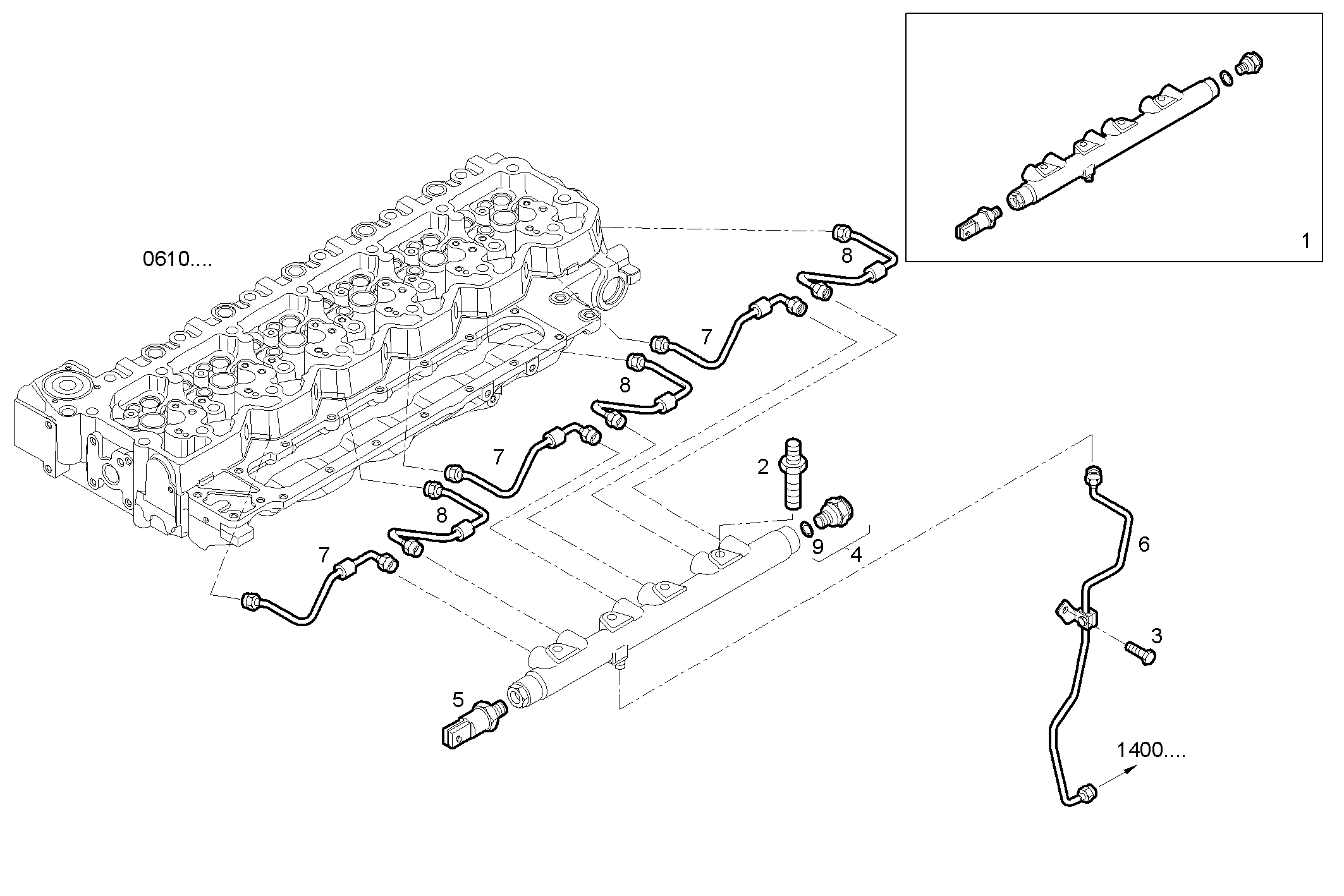

1405.023 HYDRAUL. ACCUMULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504088207 | HYDRAULIC CYLINDER ASSY |
| 2 | 504053874 | HEXAGON BOLT |
| 3 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 4 | 504088436 | VALVE ASSY |
| 5 | 504123163 | SENSOR |
| 6 | 504223071 | FUEL LINE |
| 7 | 504323116 | FUEL LINE |
| 8 | 504323096 | FUEL LINE |
| 9 | 42553494 | O-RING |
