F4DE9684W*J101

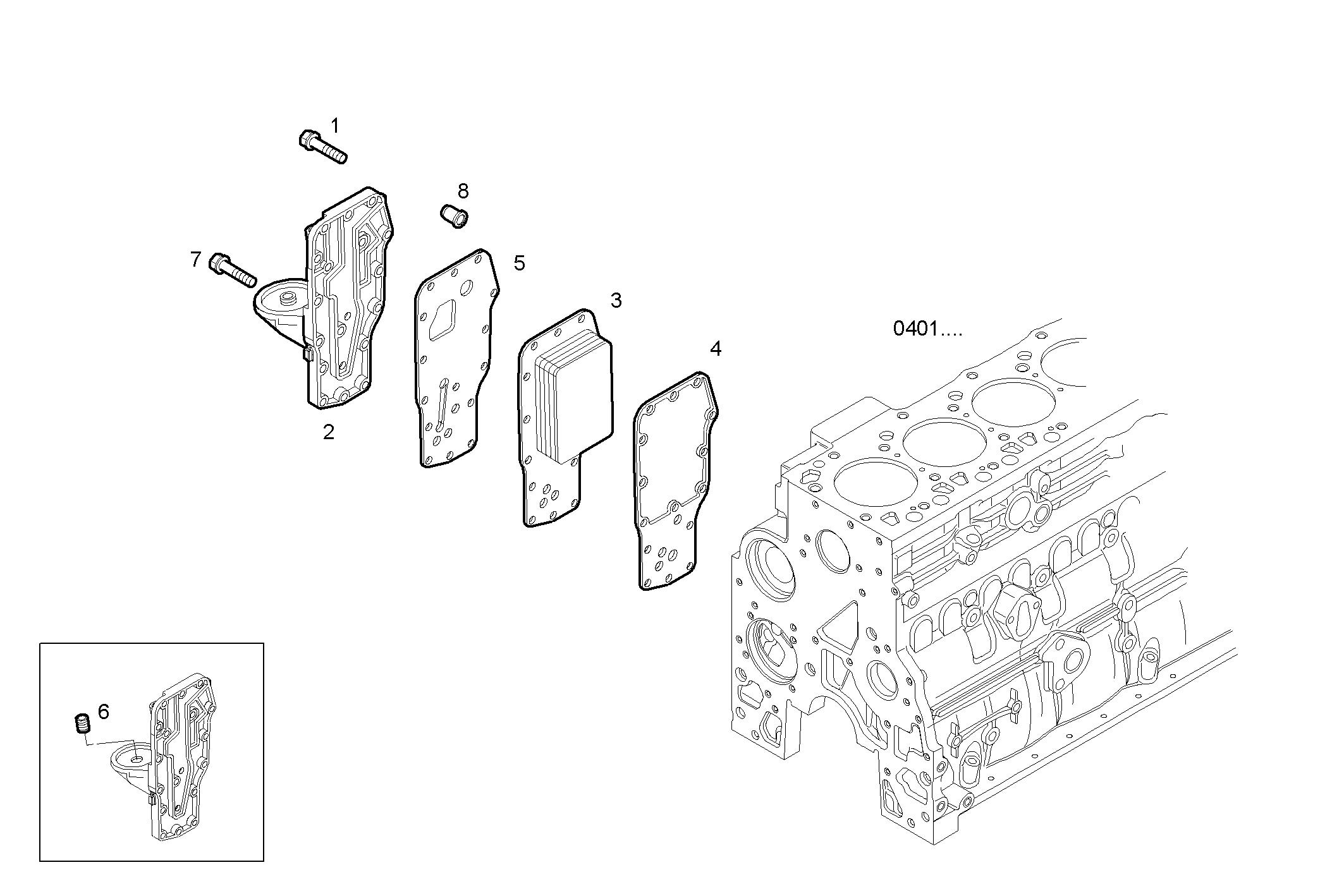

3150.020 OIL - WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 4899019 | HEXAGON BOLT M8X35 MM |
2 | 2830673 | HEAT EXANGER BODY ASSY |
3 | 504047629 | OIL COOLER |
4 | 2830559 | FLAT ENGINE GASKET |
5 | 2831317 | FLAT ENGINE GASKET |
6 | 4893391 | THREADED UNION |
7 | 16598324 | HEXAGON BOLT M8X100 MM |
8 | 4896410 | VALVE |
