F4DE9684X*J102

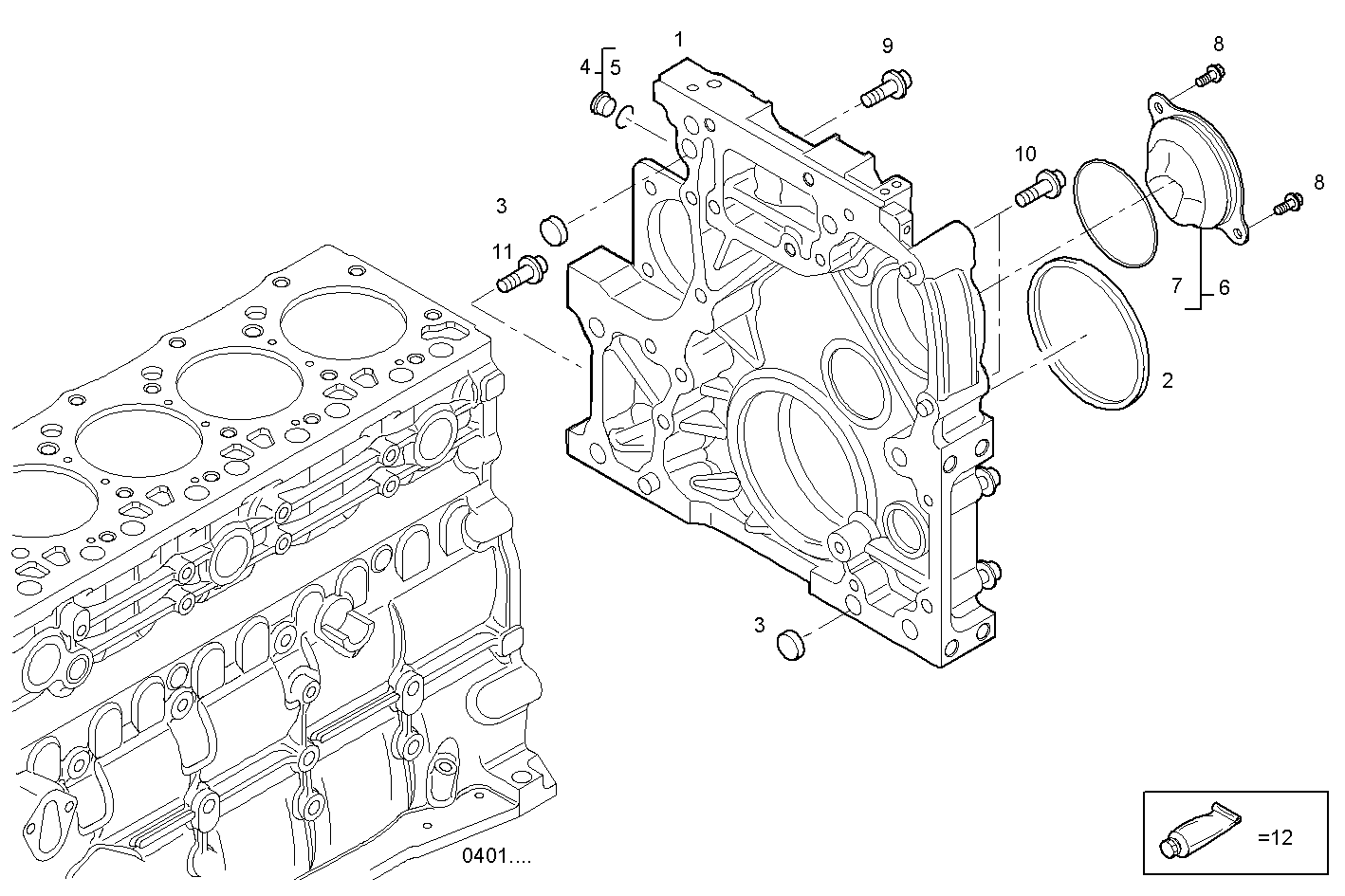

0432.036 REAR C.CASE COVER

Iveco/FPT REAR C.CASE COVER

Item Part number Description
1 504170041 REAR C.CASE COVER
2 4890833 SHAFT SEAL
3 4894532 DOWEL PIN
4 4895392 THREADED PLUG ASSY M18X1,5
5 4895393 O-RING
6 504110650 HOUSING COVER ASSY
7 504108486 O-RING [FROM # 170903]
8 4895586 HEXAGON BOLT
9 4891250 HEXAGON BOLT M12X1,75
10 4899145 HEXAGON BOLT
11 4899385 HEXAGON BOLT M16X1,5
12 2992504 ADHESIVE/STICKER LOCTITE
