F4DE9684Y*J103

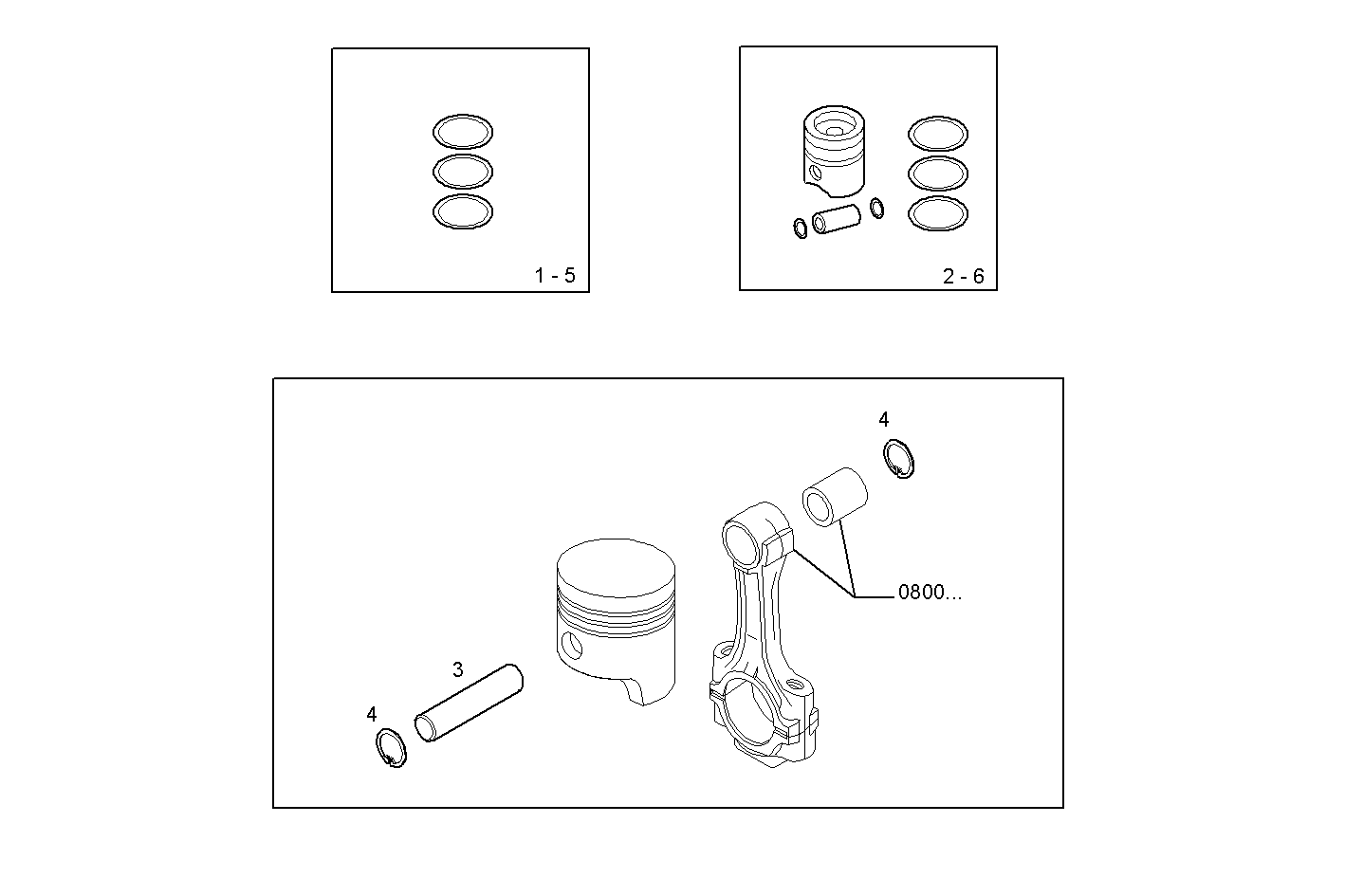

0820.220 PISTON ASSY - PISTON RINGS - PISTON PIN
| Item | Part number | Description |
|---|---|---|
| 1 | 8094845 | PISTONRING SET STD |
| 2 | 8094853 | PISTON ASSY |
| 3 | 4892712 | PISTON PIN |
| 4 | 504093651 | SPRING LOCKWASHER |
| 5 | 8094847 | PISTONRING SET+0.4 |
| 6 | 8094854 | PISTON ASSY. +0.4 |
