F4DE9687E*J103

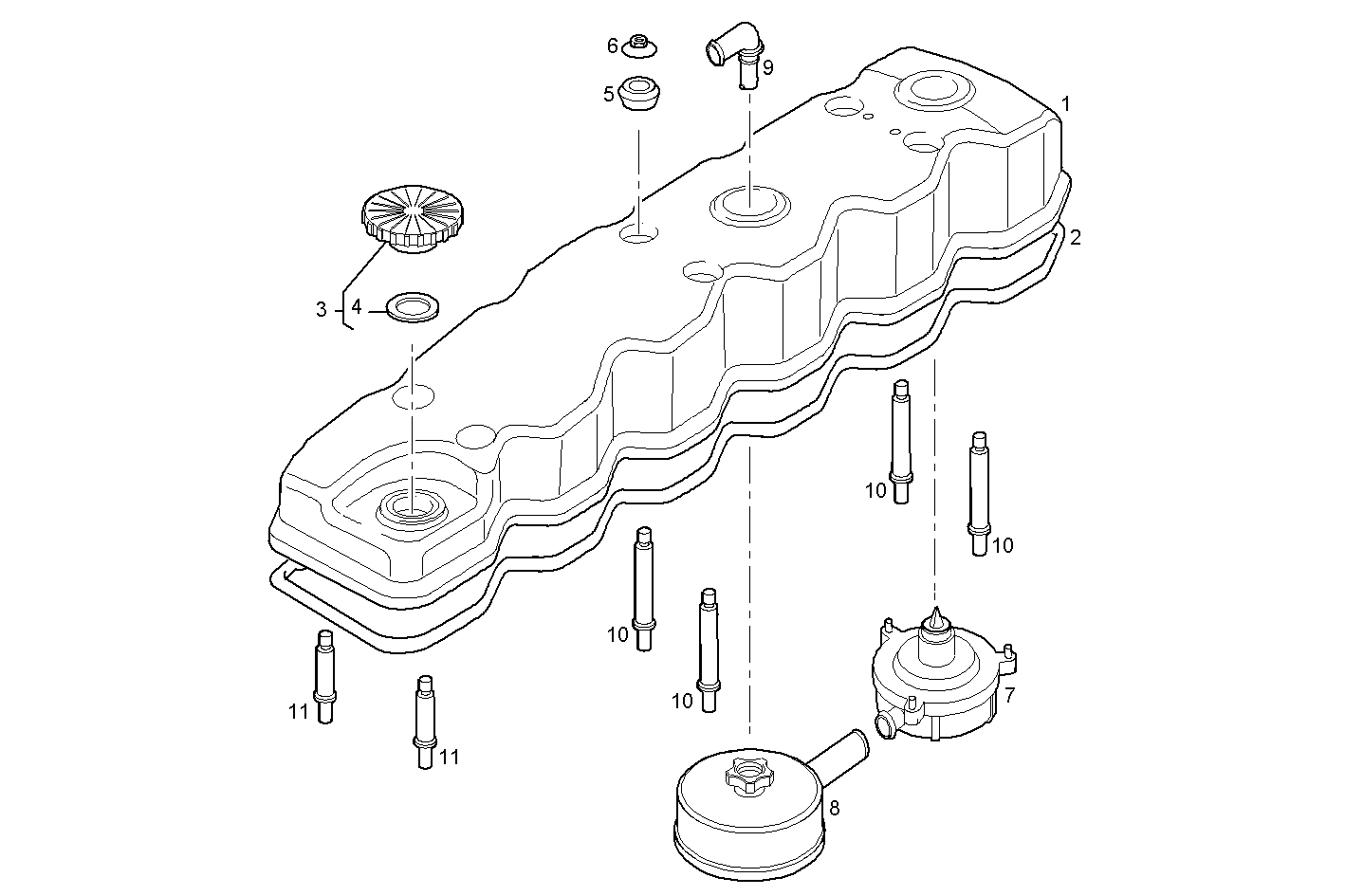

0630.038 CYL. HEAD COVERS
Item | Part number | Description |
---|---|---|
1 | 504116680 | CYL. HEAD COVER |
2 | 504070038 | HEAD COVER GASKET |
3 | 98442027 | OIL FILLER PLUG ASSY |
4 | 98412146 | GASKET |
5 | 504070041 | RUBBER LUG |
6 | 504075125 | HEXAGON NUT M8X1,25 |
7 | 504153150 | VALVE |
8 | 504153151 | BREATHER |
9 | 504153152 | BREATHER CONN. |
10 | 504129243 | COLLAR SCREW |
11 | 504088235 | COLLAR SCREW |
