F4GE0404B*D651

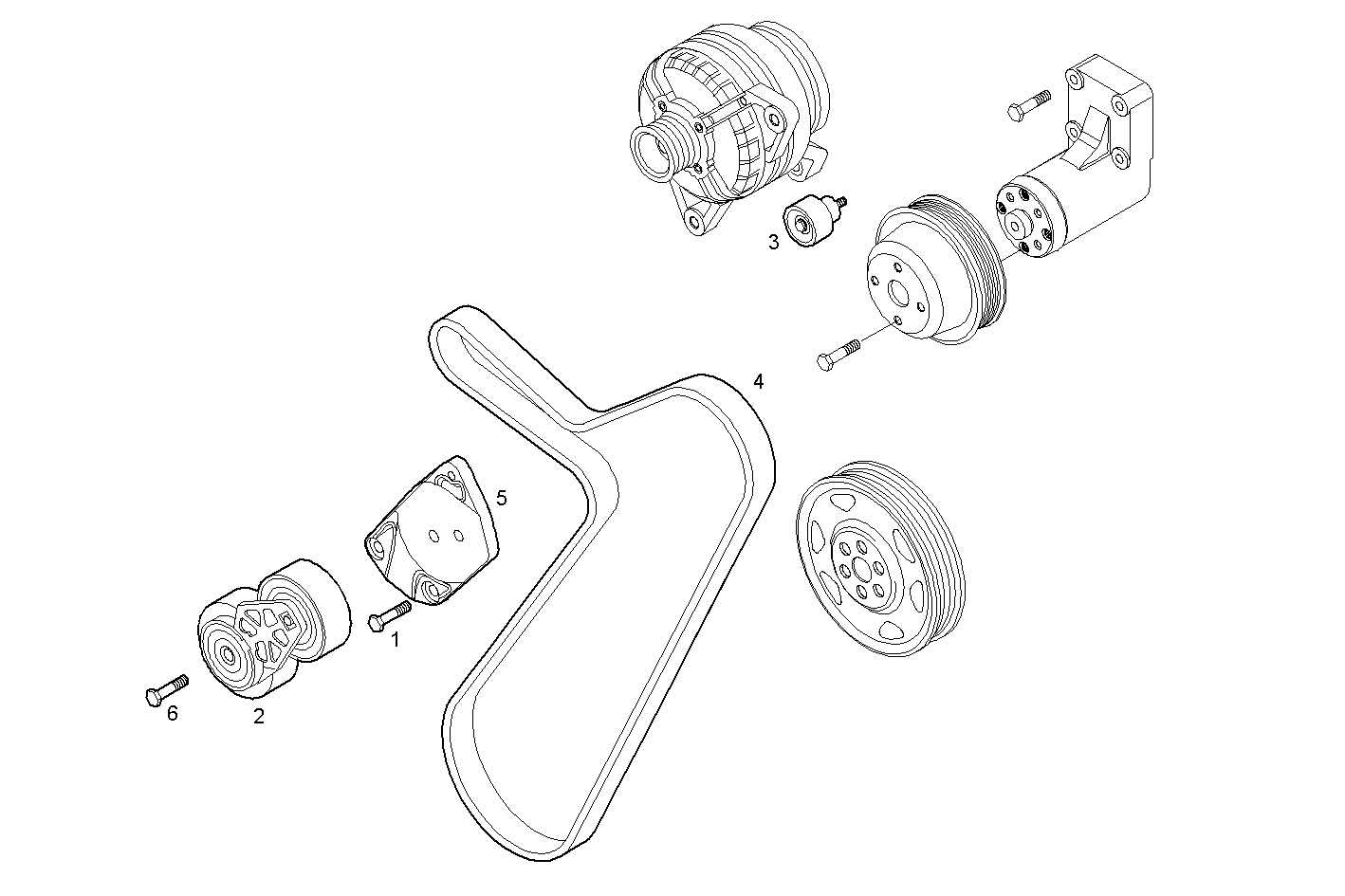

3400.038 WATER PUMP DRIVE
Item | Part number | Description |
---|---|---|
1 | 4899079 | HEXAGON BOLT |
2 | 504028028 | BELT TENSIONER |
3 | 504065880 | PULLEY |
4 | 504009874 | V-BELT |
5 | 504064340 | SUPPORT |
6 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
