F4GE0404B*D652

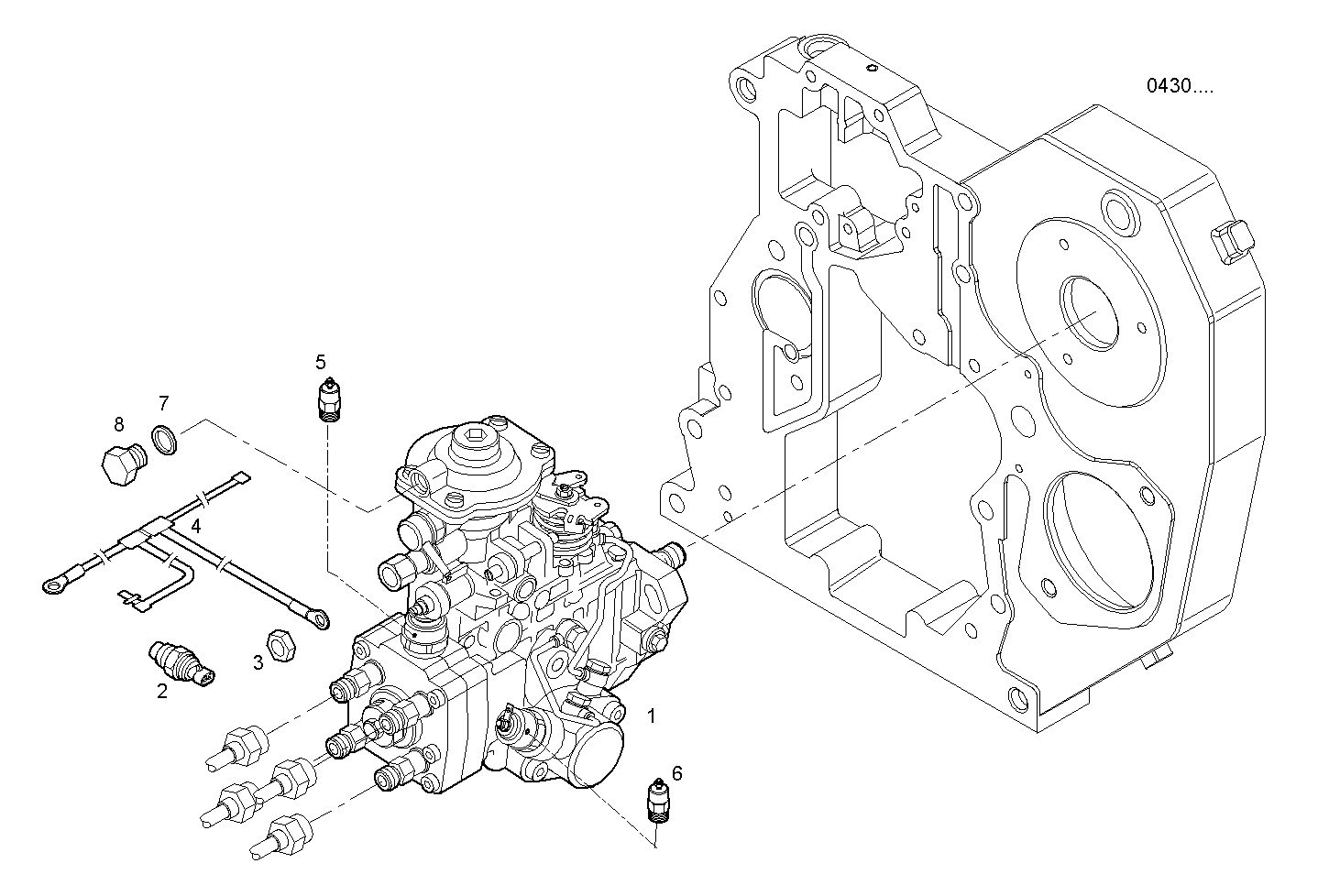

1400.389 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504112017 | DISTRIB.INJ.PUMP |
| 2 | 504032877 | SENSOR water temperature for KSB |
| 3 | 16979231 | HEXAGON NUT M5 |
| 4 | 504060728 | WIRE/CABLE for electrovalve & ksb |
| 5 | 42533181 | ELECTROVALVE 12V |
| 6 | 93192974 | MAGNETO KSB |
| 7 | 17915780 | O-RING |
| 8 | 504065067 | THREADED PLUG M10X1 |
