F4GE0404B*D652

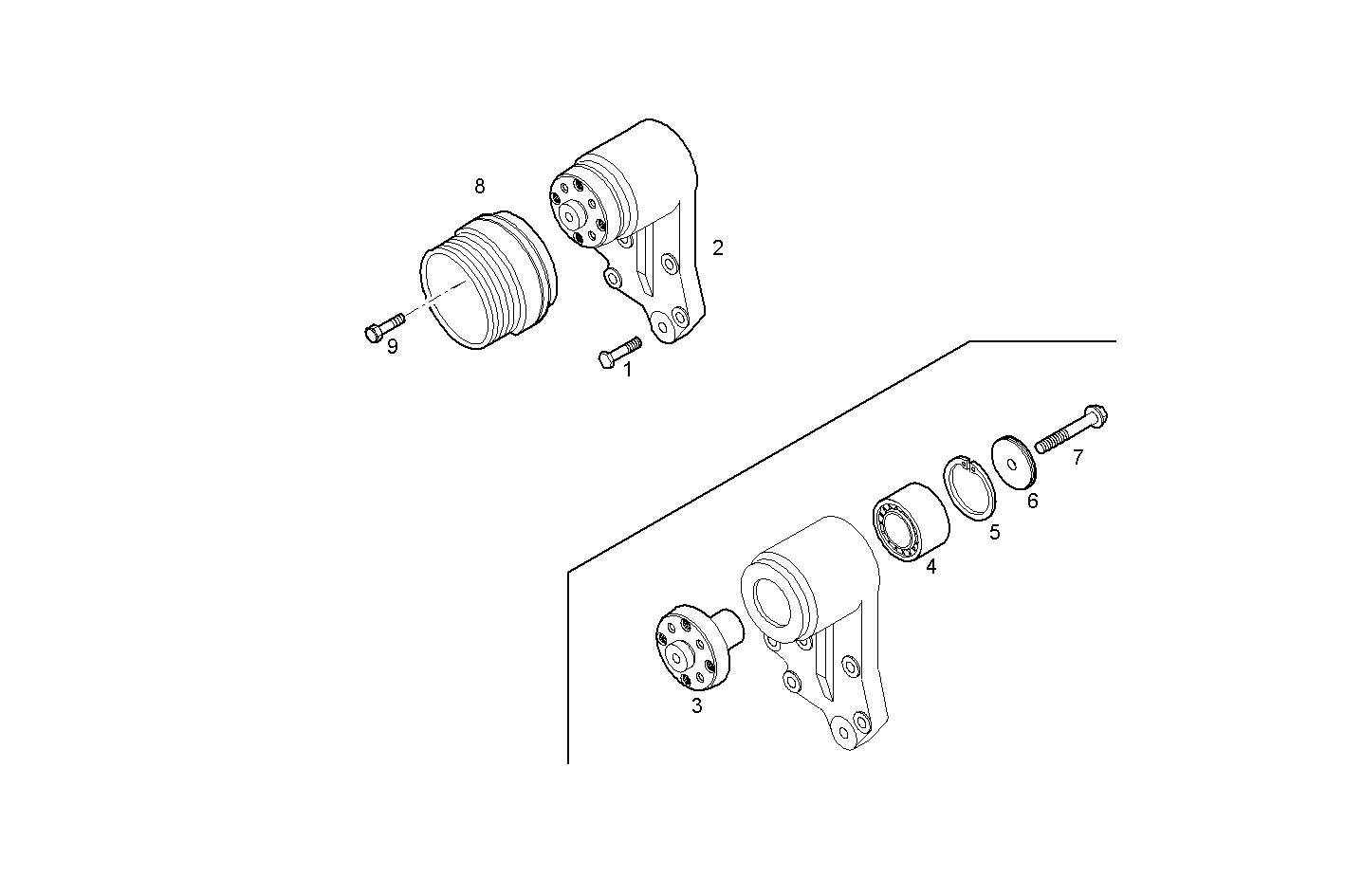

3470.032 FAN ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 1 | 4899053 | HEXAGON BOLT |
| 2 | 504072900 | SUPPORT ASSY |
| 3 | 4892426 | HUB |
| 4 | 4892732 | BALL BEARING |
| 5 | 500395697 | SPRING LOCKWASHER |
| 6 | 4890732 | WASHER |
| 7 | 16676834 | HEXAGON BOLT M10X70 MM |
| 8 | 8037201 | PULLEY |
| 9 | 16675835 | HEXAGON BOLT M10X30 MM |
