F4GE0404B*D652

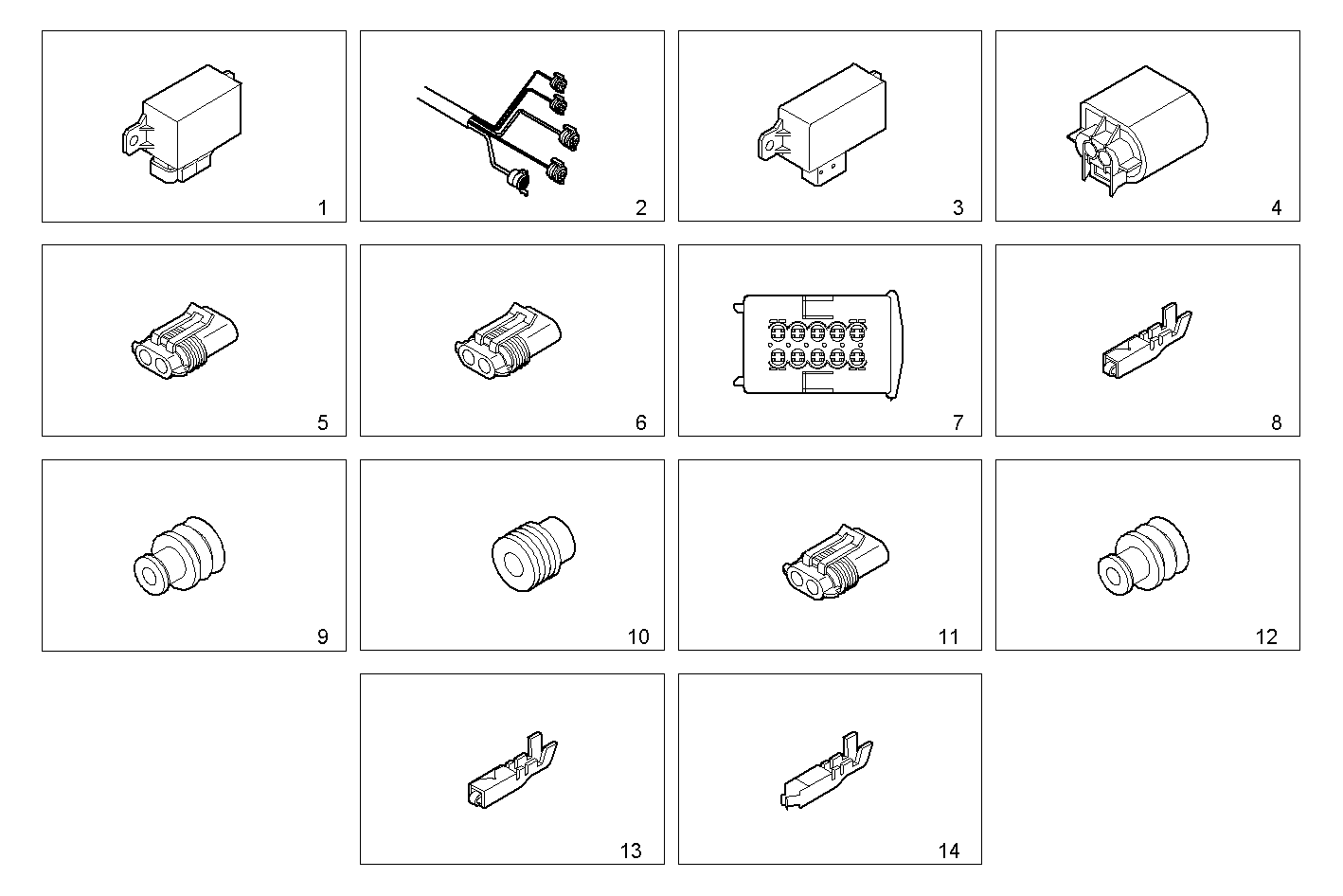

8328.015 ELECTRIC WIRING
| Item | Part number | Description |
|---|---|---|
| 1 | 500343161 | RELAY |
| 2 | 504032825 | WIRE/CABLE water temperature for KSB |
| 3 | 504034977 | ELECTR.CONTR.UNIT |
| 4 | 8030896 | CONNECTION assy for alternator |
| 5 | 8033231 | CONNECTION ASSY |
| 6 | 8033709 | CONNECTION ASSY |
| 7 | 8034200 | WIRE CONNECTOR ASSY |
| 8 | 12309290 | TERMINAL |
| 9 | 4835259 | GASKET |
| 10 | 98420215 | PLUG |
| 11 | 98435345 | WIRE CONNECTOR 1 pin female |
| 12 | 4861936 | RUBBER BUSH YELLOW |
| 13 | 98435372 | TERMINAL |
| 14 | 500303123 | TERMINAL |
