F4GE0454C*D660

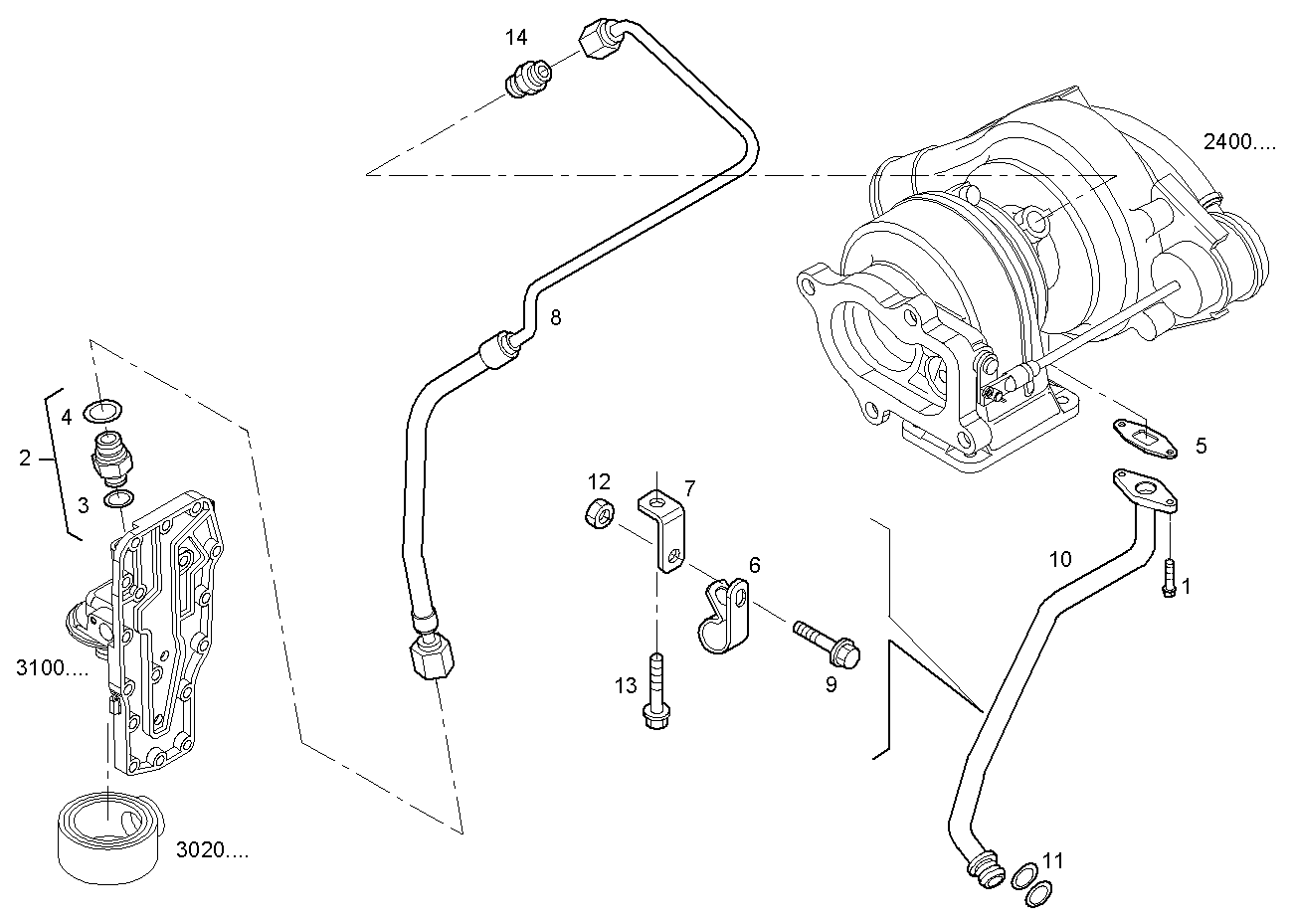

3063.027 TURBOCHARGER OIL LINES

Iveco/FPT TURBOCHARGER OIL LINES

Item Part number Description
1 4895164 HEXAGON BOLT
2 4895107 THREADED UNION ASSY
3 4899107 O-RING
4 4899108 O-RING
5 4899467 FLAT ENGINE GASKET
6 4899519 BRACKET
7 504053894 FASTENING BRACKET
8 504053173 OIL LINE INLET
9 18137825 HEXAGON BOLT M6X16
10 504053166 OIL LINE
11 17281881 O-RING DIA 17,12 SP 2,62
12 17044625 HEXAGON NUT M6
13 18138325 HEXAGON BOLT M8X16 MM
14 4899106 PIPE SOCKET
