F4GE0684C*D601

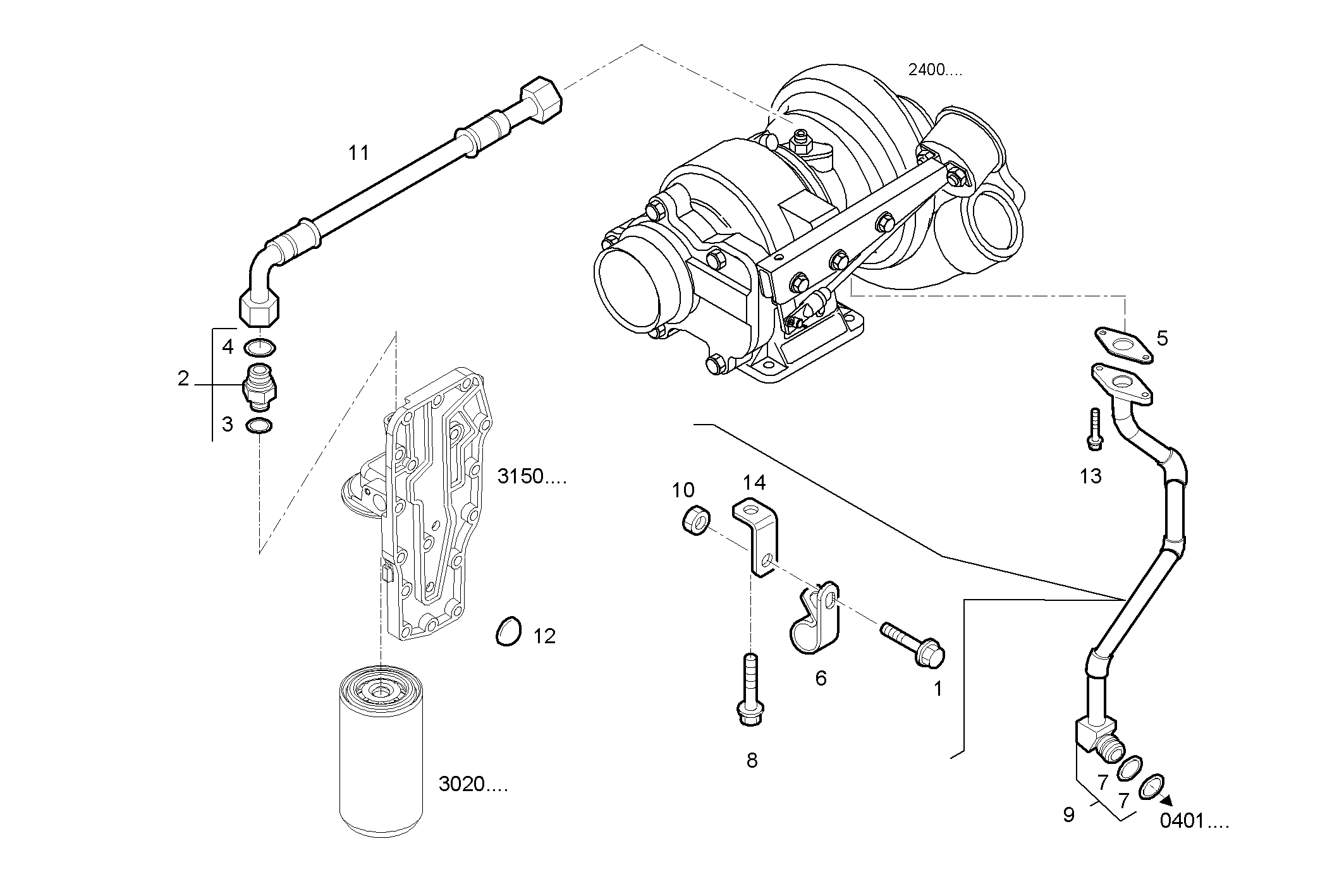

3063.022 TURBOCHARGER OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 18138325 | HEXAGON BOLT M8X16 MM |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 4899107 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4891288 | FLAT ENGINE GASKET |
| 6 | 4896893 | CLIP |
| 7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
| 8 | 16677735 | HEXAGON BOLT M12X25 MM |
| 9 | 504019911 | OIL LINE |
| 10 | 17044921 | HEXAGON NUT M12 |
| 11 | 504084095 | OIL LINE |
| 12 | 4895089 | PLUG |
| 13 | 4899031 | HEXAGON BOLT M8X25 MM |
| 14 | 98459285 | FASTENING BRACKET |
