F4GE9454C*J606

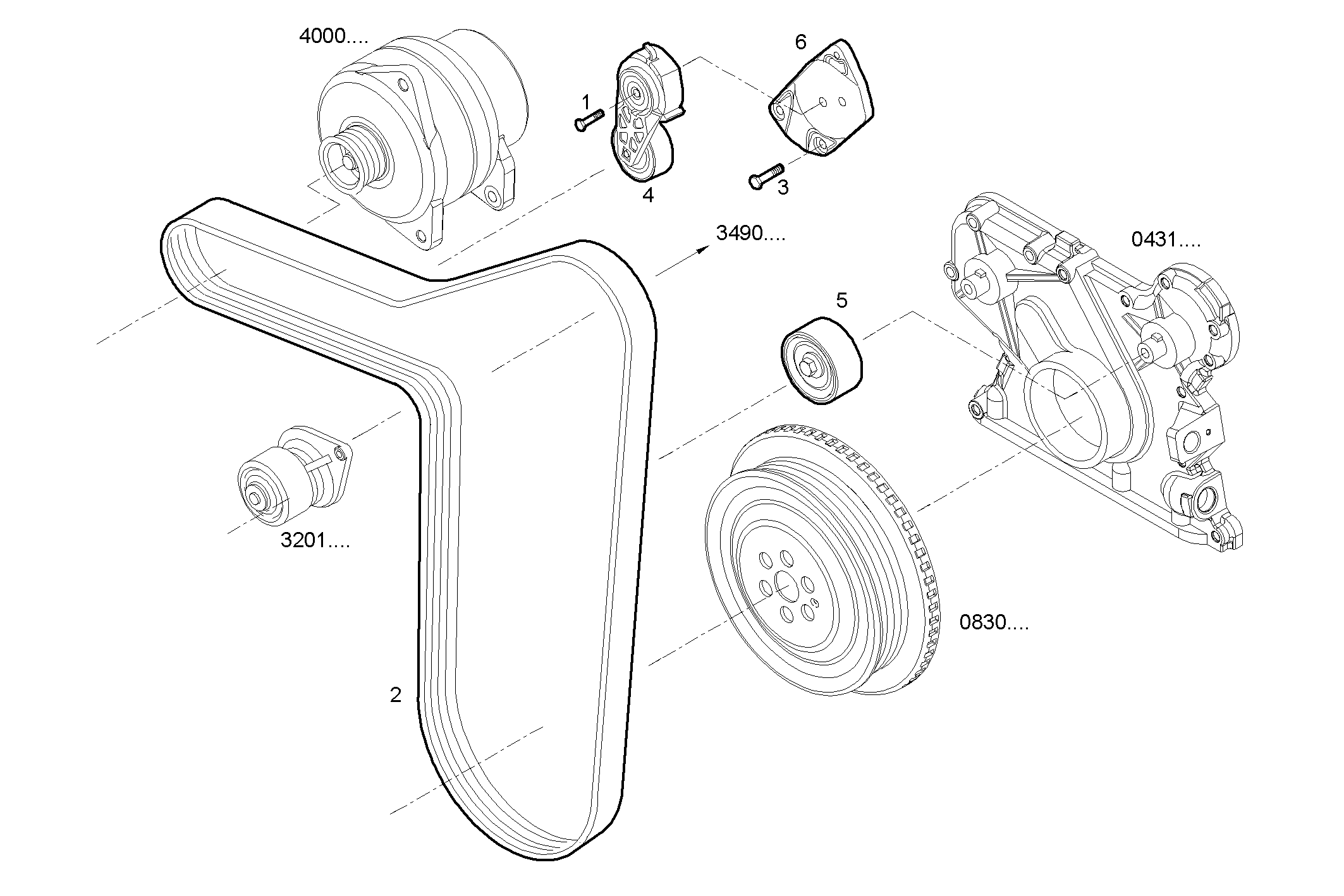

3400.048 WATER PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4895292 | HEXAGON BOLT M10X1,5X70 MM |
| 2 | 4899178 | V-BELT |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 504028028 | BELT TENSIONER |
| 5 | 504065880 | PULLEY |
| 6 | 504242517 | SUPPORT |
