F4GE9484F*J605

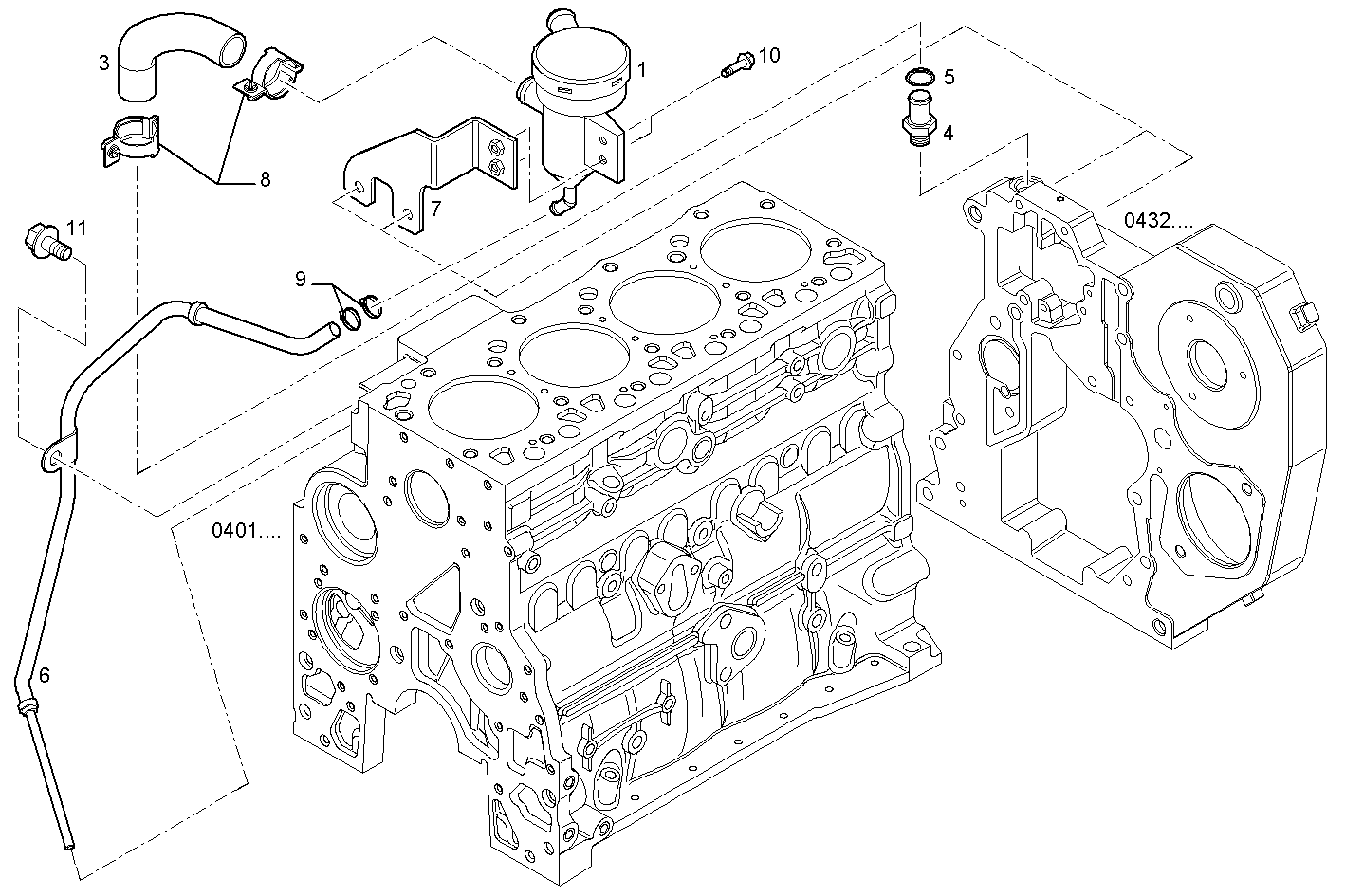

0450.236 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 504168184 | VALVE |
| 2 | 504170767 | RUBBER SLEEVE |
| 3 | 504170633 | RUBBER SLEEVE |
| 4 | 504170635 | SCREW CONNECTOR |
| 5 | 99489021 | WASHER Ø20X28 MM SP=1,5 MM |
| 6 | 504170637 | BREATHER PIPE |
| 7 | 504168306 | FASTENING BRACKET |
| 8 | 4893234 | CLIP |
| 9 | 18088192 | CLIP m10-16 |
| 10 | 4899092 | HEXAGON BOLT |
| 11 | 16597424 | HEXAGON BOLT |
