F4GE9484F*J612

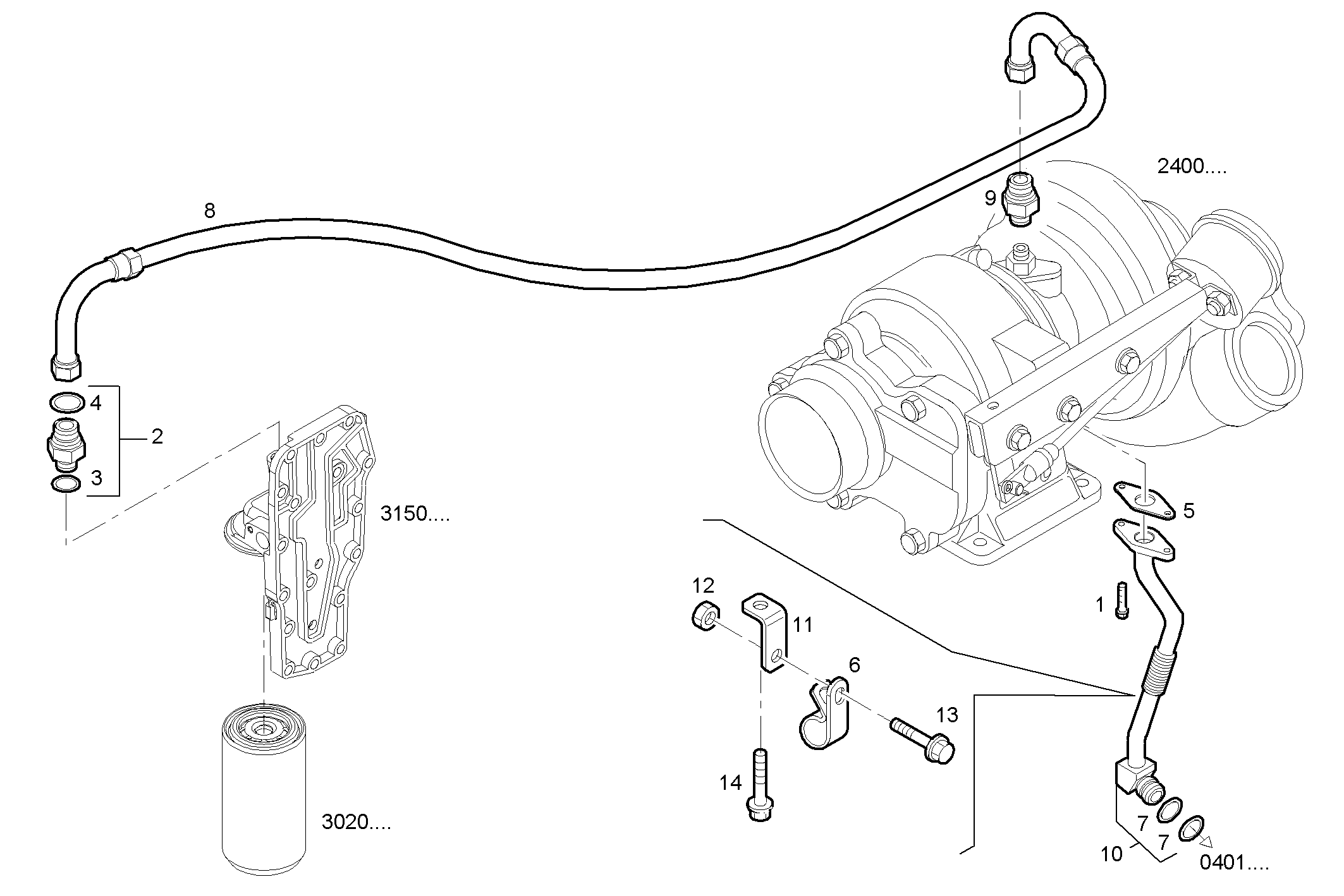

3063.033 TURBOCHARGER OIL LINES
Item | Part number | Description |
---|---|---|
1 | 4895164 | HEXAGON BOLT |
2 | 504329209 | THREADED UNION ASSY |
3 | 4895610 | O-RING |
4 | 4899108 | O-RING |
5 | 4899467 | FLAT ENGINE GASKET |
6 | 4899519 | BRACKET |
7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
8 | 504053173 | OIL LINE INLET |
9 | 4899106 | PIPE SOCKET |
10 | 504053911 | OIL LINE OUTLET |
11 | 504053894 | FASTENING BRACKET |
12 | 17044625 | HEXAGON NUT M6 |
13 | 18137825 | HEXAGON BOLT M6X16 |
14 | 4899068 | HEXAGON BOLT M8X17 MM |
