F4GE9684D*J602

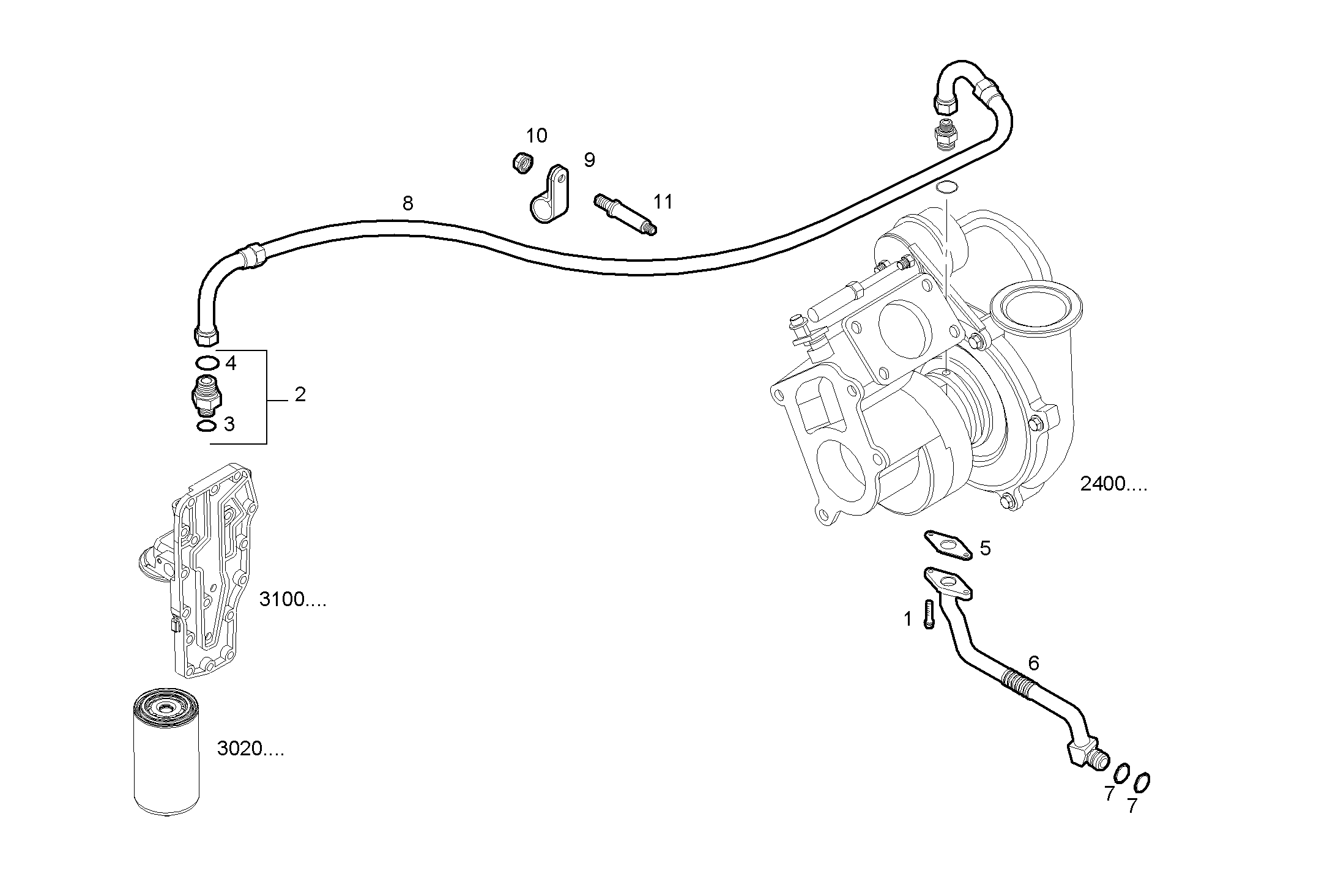

3010.226 LUBE OIL LINES
Item | Part number | Description |
---|---|---|
1 | 4899110 | HEXAGON BOLT |
2 | 4895107 | THREADED UNION ASSY |
3 | 4899107 | O-RING |
4 | 4899108 | O-RING |
5 | 4891288 | FLAT ENGINE GASKET |
6 | 8036668 | OIL LINE OUTLET |
7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
8 | 4899377 | OIL LINE |
9 | 4899436 | CLIP M8X17 MM |
10 | 17044735 | NUT M8 |
11 | 4896991 | COLLAR SCREW |
