F4HE0684B*D100

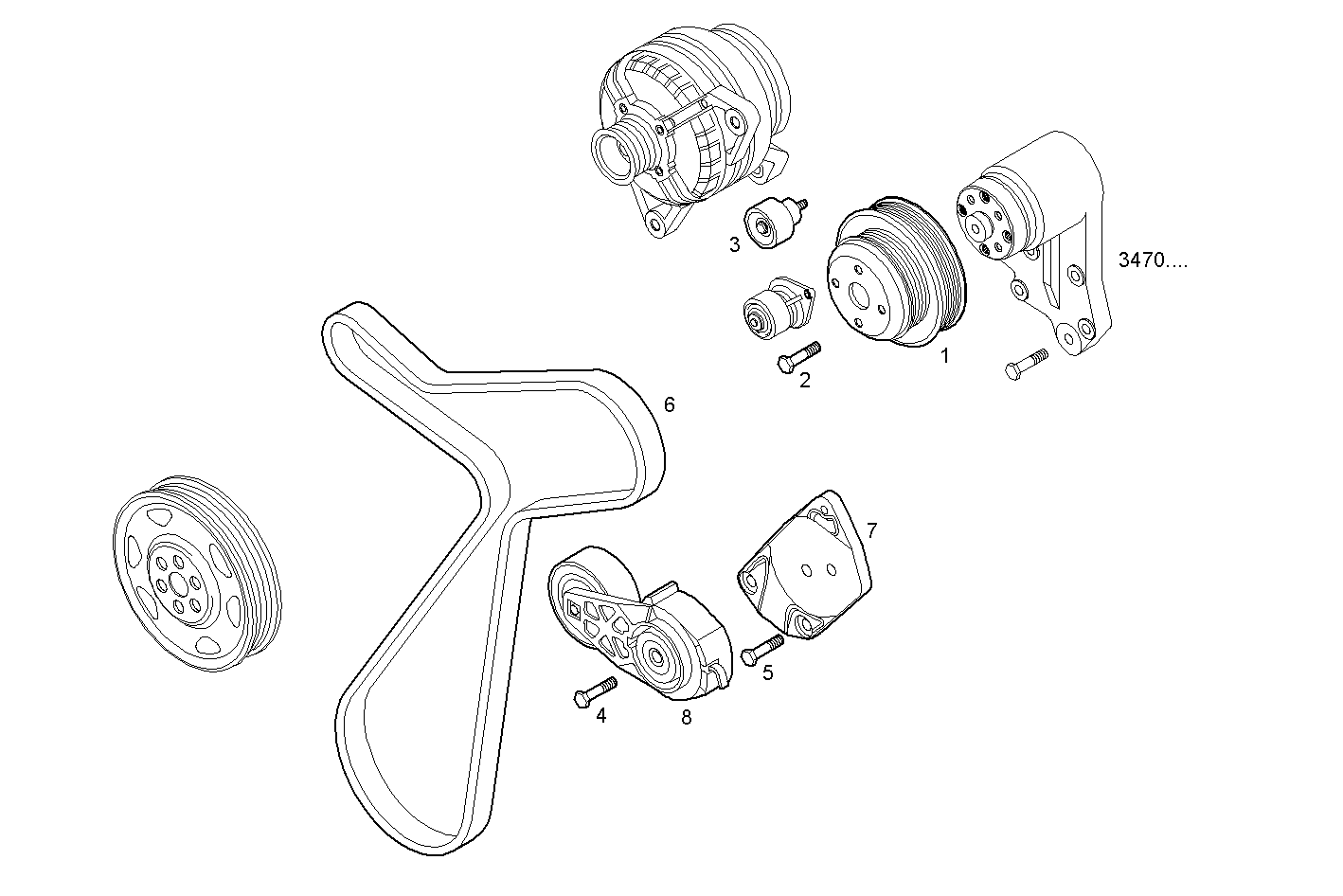

3240.167 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 504118214 | PULLEY |
| 2 | 4899032 | HEXAGON BOLT M10X25 MM |
| 3 | 504065879 | PULLEY |
| 4 | 4895292 | HEXAGON BOLT M10X1,5X70 MM |
| 5 | 16673835 | HEXAGON BOLT M8X30 MM |
| 6 | 504050488 | WATER PUMP BELT |
| 7 | 504075011 | BELT TENSION.SUPP |
| 8 | 504028028 | BELT TENSIONER |
