F4HE0684B*D100

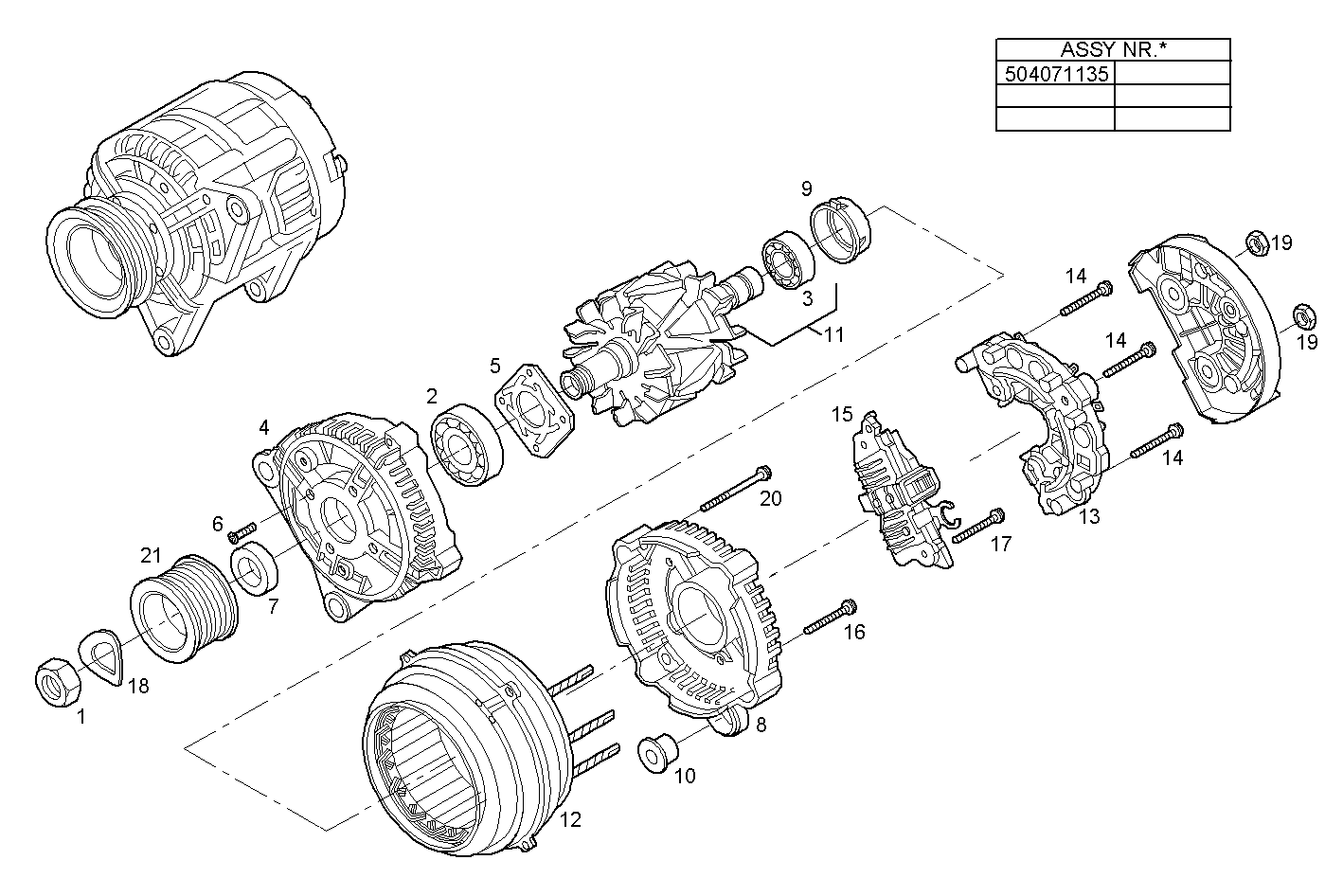

4030.059 GENERATOR (COMPONENTS)

Iveco/FPT GENERATOR (COMPONENTS)

Item Part number Description
1 1113178 NUT M16X1,5
2 2991636 ENGINE BEARINGS
3 2991637 ENGINE BEARINGS
4 42537056 GENERATOR SUPPORT
5 42537057 PLATE
6 42537058 C'SUNK SCREW
7 42533805 SPACING BAR
8 42537670 GENERATOR SUPPORT
9 42471431 BUSH
10 42471432 BUSH
11 42471433 GENERATOR ROTOR ASSY
12 42471434 GENERATOR STATOR
13 8094568 RECTIFIER BRIDGE
14 42537878 SCREW
15 42534878 VOLTAGE REGULATOR
16 42536305 SCREW
17 42536304 SCREW
18 42531183 SPRING WASHER
19 42533817 HEXAGON NUT
20 42533819 SCREW
21 42535631 GENERATOR PULLEY
