F4HE0684E*D103

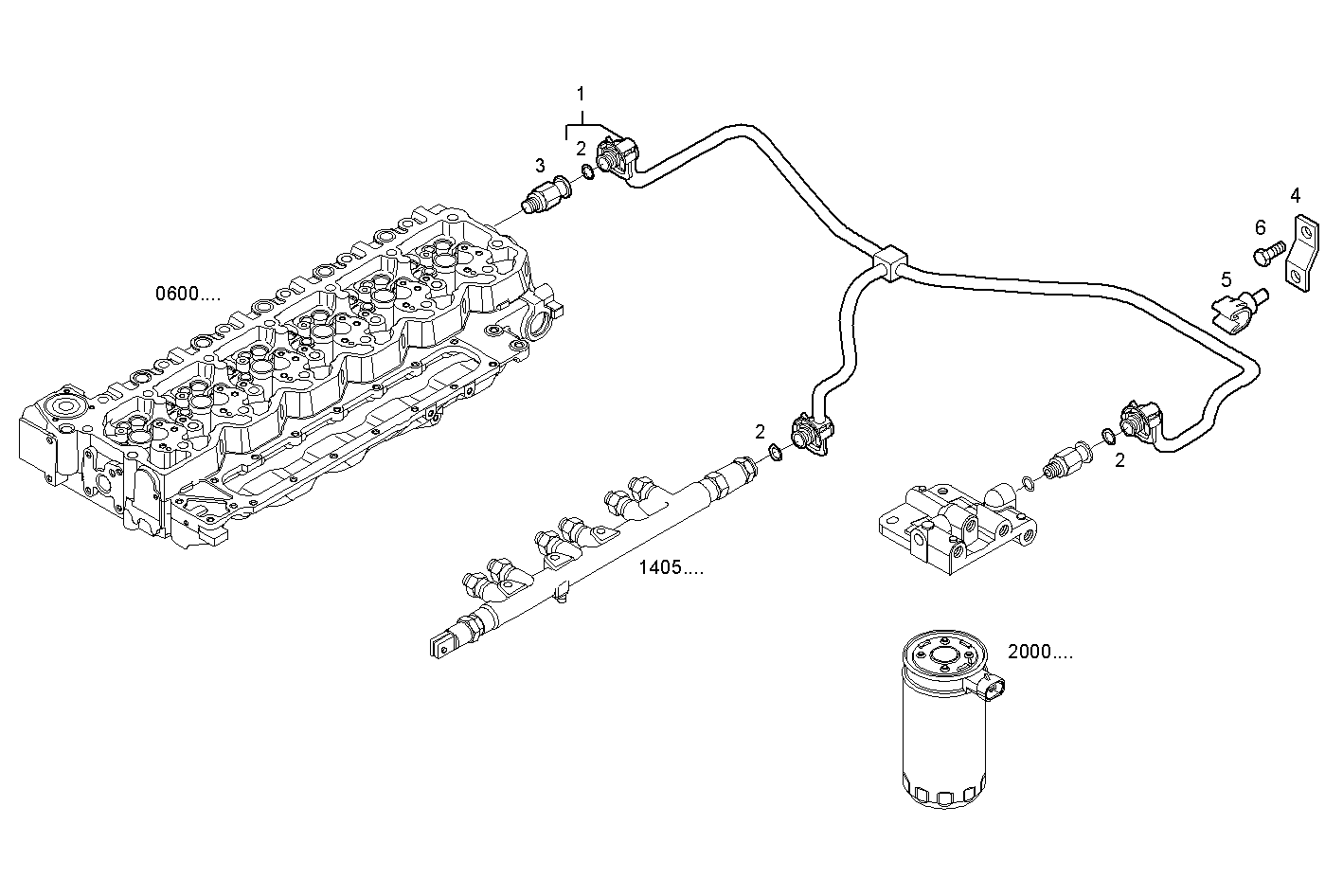

2030.212 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 504080759 | FUEL PIPES ASSY |
2 | 4894095 | O-RING |
3 | 4896329 | CONTROL VALVE |
4 | 99481827 | FASTENING BRACKET |
5 | 504065285 | SPRING CLAMP |
6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
