F4HE0684F*D100

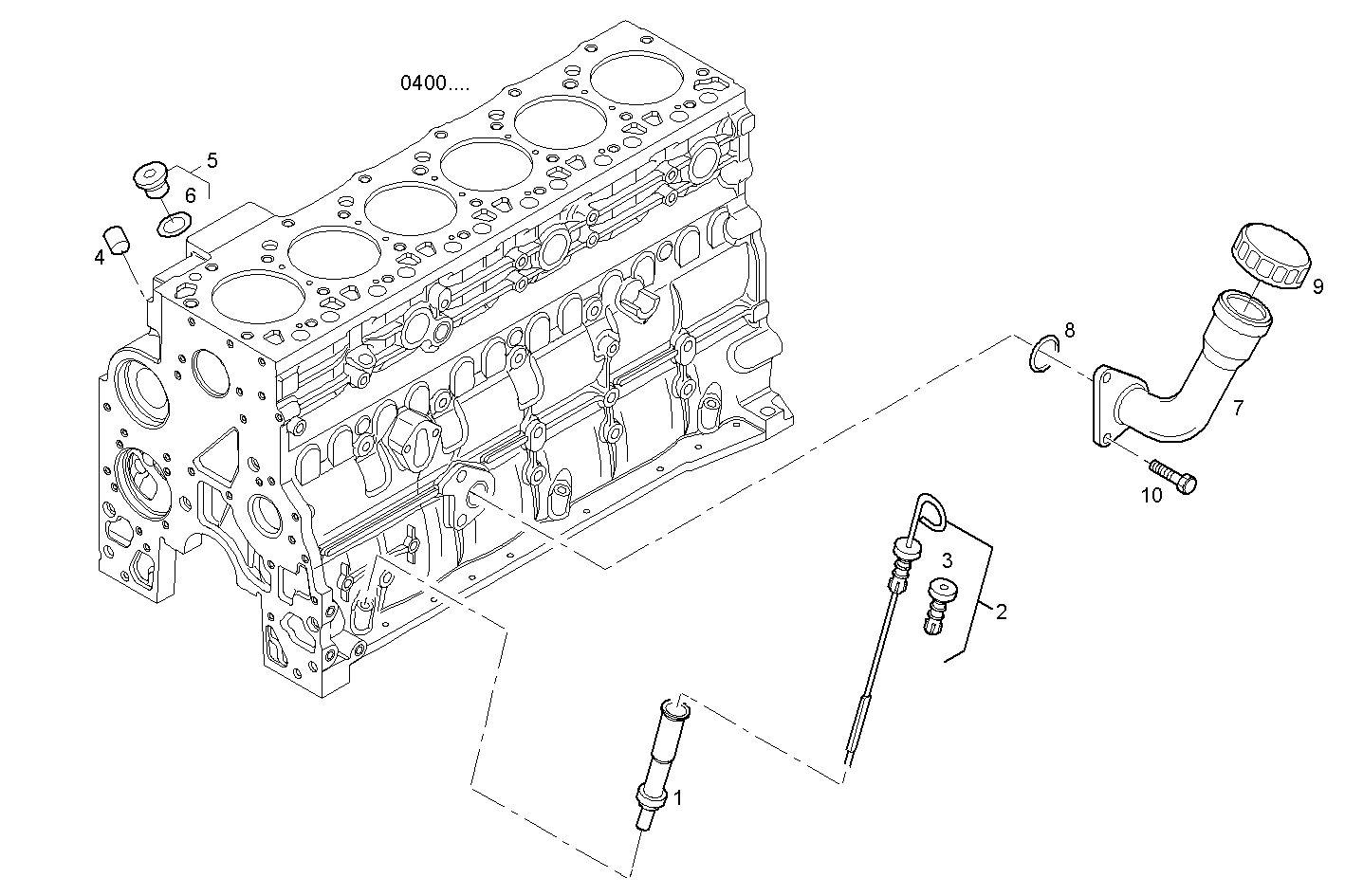

2710.139 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 504011329 OIL LEVEL TUBE
2 504069039 OIL DIPSTICK ASSY
3 7300023 RUBBER GASKET
4 4899036 PLUG
5 4897330 PLUG ASSY M12X1,5
6 4895610 O-RING
7 504011338 OIL FILLER PIPE
8 17283181 O-RING Ø37,77 MM SP=2,62 MM
9 98429552 OIL FILLER PLUG
10 16677735 HEXAGON BOLT M12X25 MM
