F4HE0684F*D100

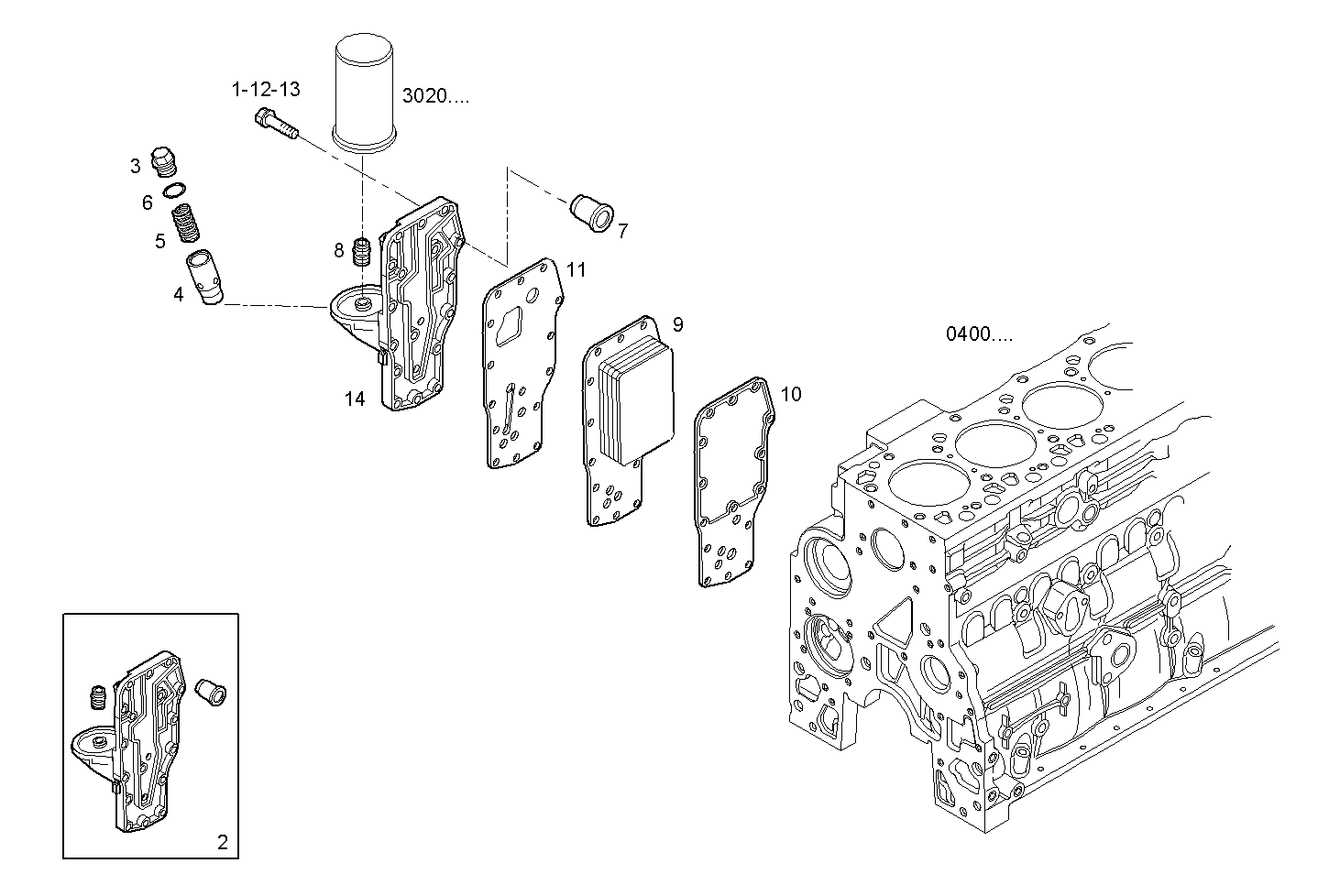

3100.143 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 16586621 | HEXAGON BOLT M8X35MM |
| 2 | 504089280 | OIL/WATER HEAT EXCHANGER ASSY |
| 3 | 4895043 | THREADED PLUG |
| 4 | 4896404 | VALVE HOUSING |
| 5 | 4895045 | VALVE SPRING |
| 6 | 4899035 | O-RING |
| 7 | 4896410 | VALVE |
| 8 | 4893391 | THREADED UNION |
| 9 | 4896407 | OIL COOLER |
| 10 | 4895742 | FLAT ENGINE GASKET |
| 11 | 4896409 | FLAT ENGINE GASKET |
| 12 | 16586921 | HEXAGON BOLT M8X50MM |
| 13 | 16598521 | SCREW M8X120MM |
| 14 | 8032971 | HEAT EXANGER BODY |
