F4HE9484A*J104

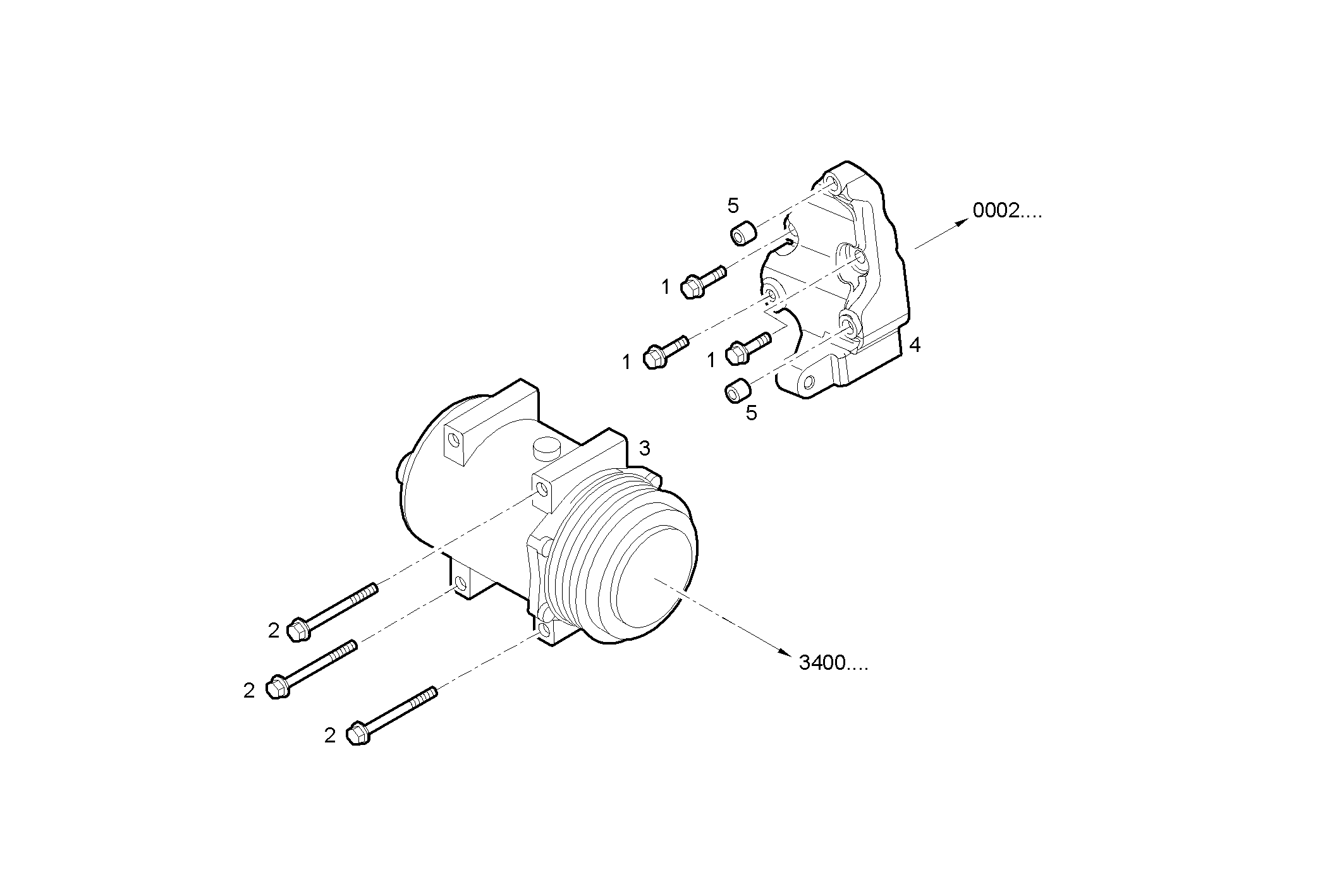

3900.040 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 16587525 | HEXAGON BOLT M10X45 MM |
| 2 | 16598325 | HEXAGON BOLT M8X100 MM |
| 3 | 504185596 | AIR COND.COMPRESS. |
| 4 | 504042428 | SUPPORT |
| 5 | 99435557 | DOWEL PIN Ø8,5 MM |
