F4HE9684A*J101

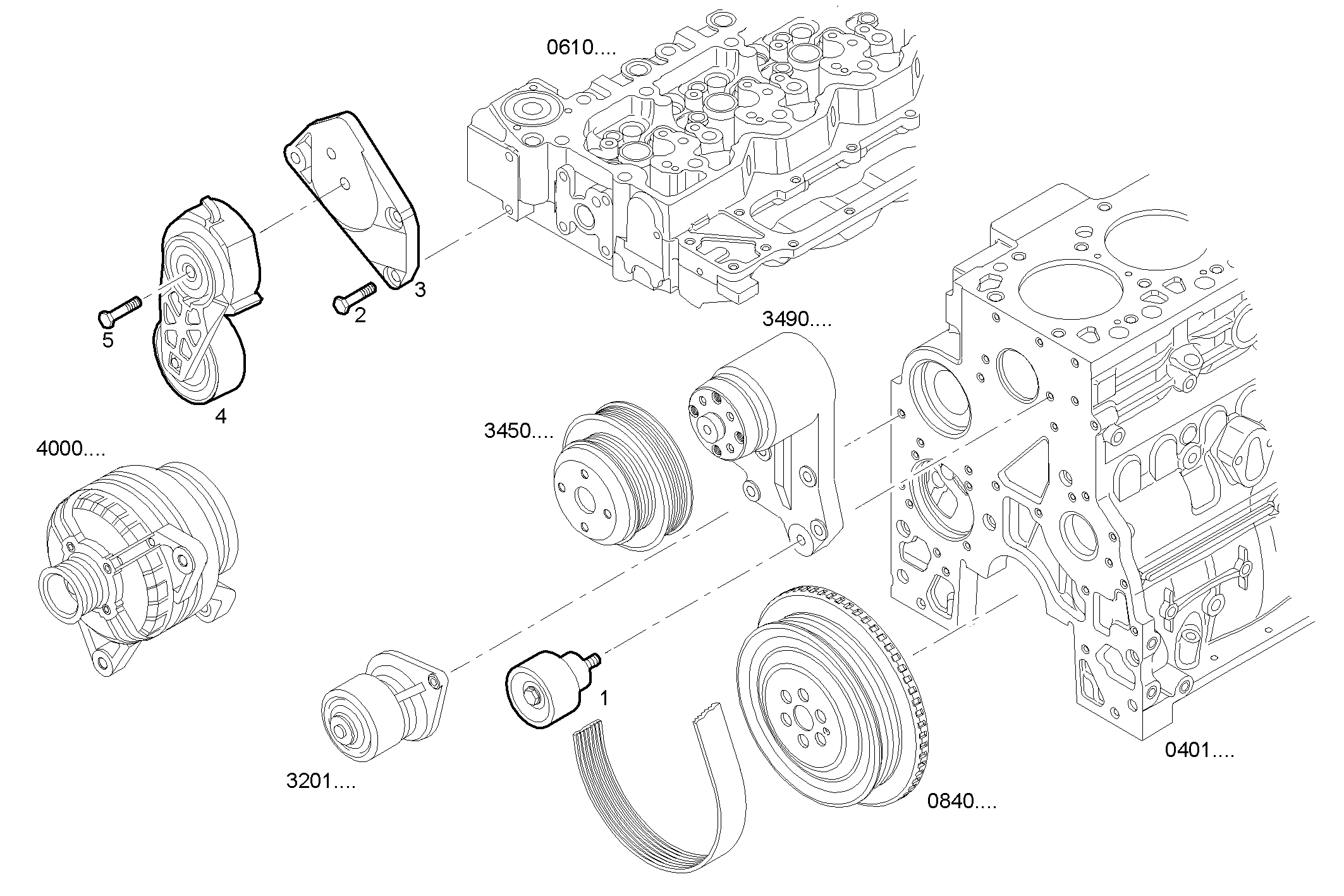

3400.025 WATER PUMP DRIVE
Item | Part number | Description |
---|---|---|
1 | 504065879 | PULLEY |
2 | 16673835 | HEXAGON BOLT M8X30 MM |
3 | 504075011 | BELT TENSION.SUPP |
4 | 504028028 | BELT TENSIONER |
5 | 4895292 | HEXAGON BOLT M10X1,5X70 MM |
