F4HE9687D*J100

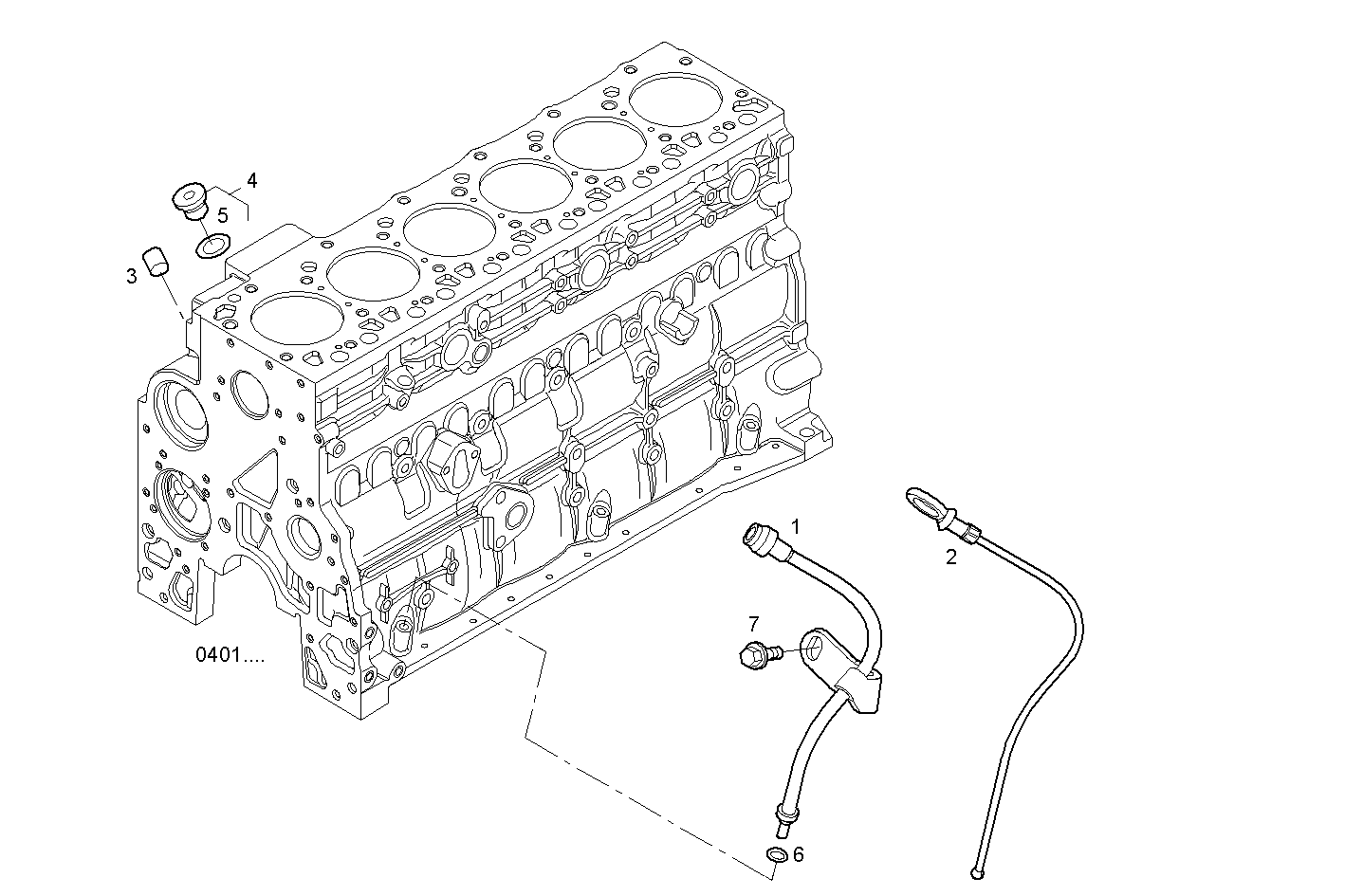

2700.049 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504056460 | OIL LEVEL TUBE |
| 2 | 504078354 | OIL DIPSTICK |
| 3 | 4895406 | PLUG |
| 4 | 4897330 | PLUG ASSY M12X1,5 |
| 5 | 4895610 | O-RING |
| 6 | 4898502 | O-RING |
| 7 | 16597425 | HEXAGON BOLT M10X16 MM |
