F4HE9687D*J100

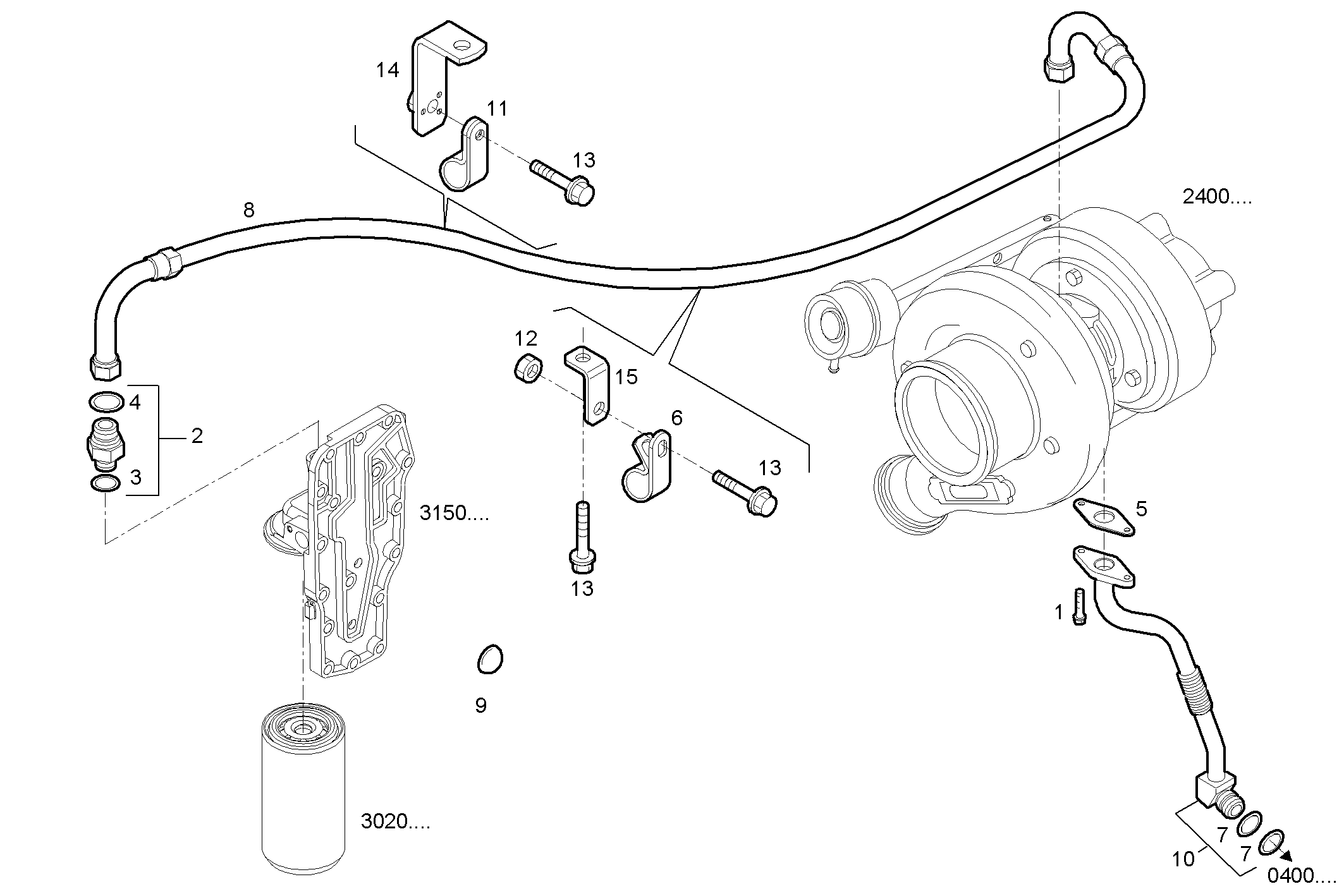

3063.023 TURBOCHARGER OIL LINES
Item | Part number | Description |
---|---|---|
1 | 4899079 | HEXAGON BOLT |
2 | 4895107 | THREADED UNION ASSY |
3 | 4899107 | O-RING |
4 | 4899108 | O-RING |
5 | 4891288 | FLAT ENGINE GASKET |
6 | 4896893 | CLIP |
7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
8 | 504084096 | OIL LINE |
9 | 4895089 | PLUG |
10 | 504010562 | OIL LINE ASSY |
11 | 4895579 | CLIP |
12 | 17044735 | NUT M8 |
13 | 4899068 | HEXAGON BOLT M8X17 MM |
14 | 99477631 | FASTENING BRACKET |
15 | 98459285 | FASTENING BRACKET |
