F5AE5454F*A001

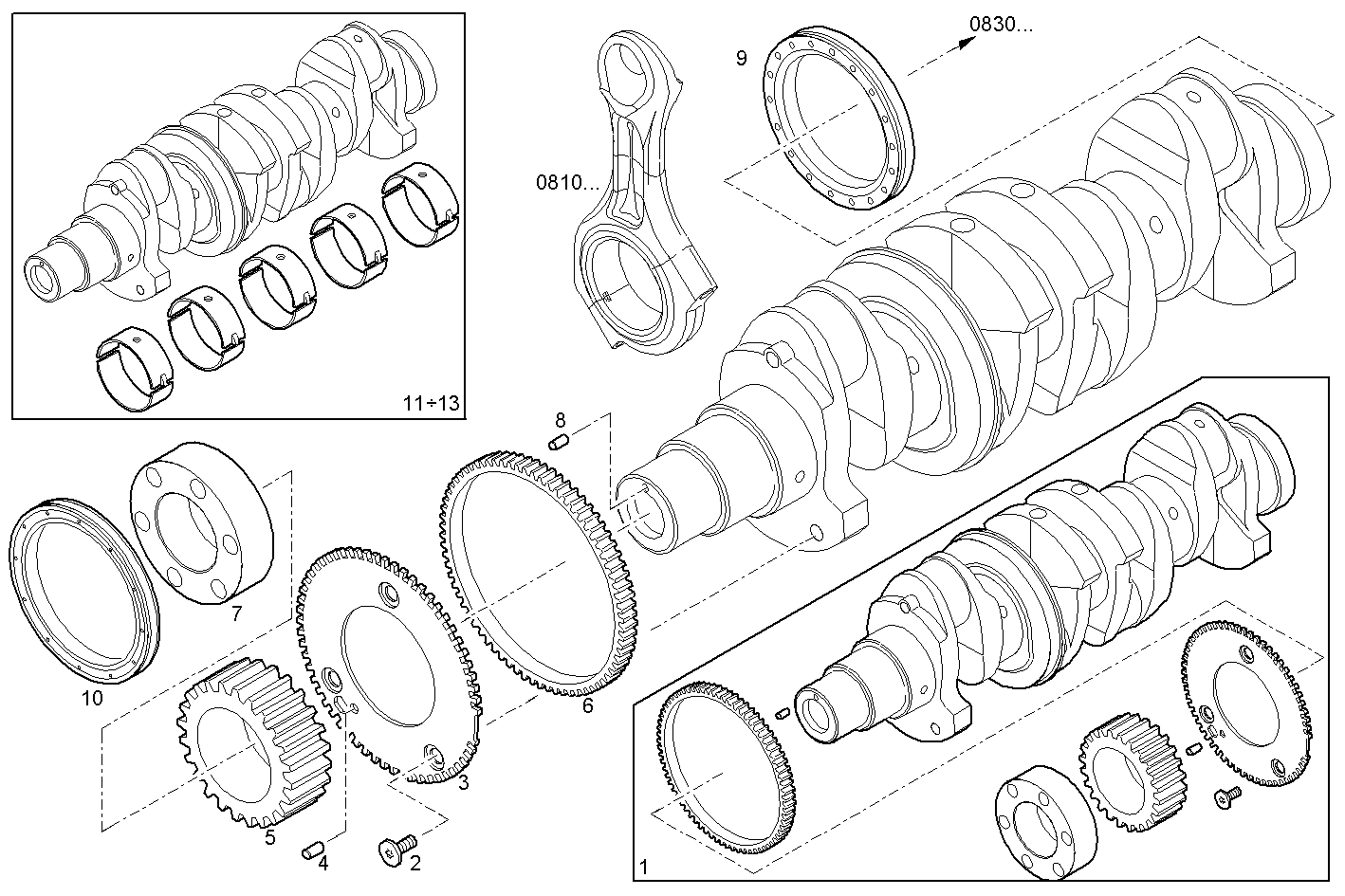

0801.033 CRANK SHAFT
| Item | Part number | Description |
|---|---|---|
| 1 | 504218660 | CRANK SHAFT ASSY |
| 2 | 500374310 | CYLIND-HEAD SCREW M6X1 |
| 3 | 504023782 | CAMSHAFT PINION |
| 4 | 504006981 | DOWEL PIN Ø5,5 MM |
| 5 | 504240426 | CAMSHAFT PINION |
| 6 | 504240432 | GEAR |
| 7 | 504187022 | CLIP |
| 8 | 17236324 | PIN |
| 9 | 504180969 | SHAFT SEAL |
| 10 | 504187305 | SHAFT SEAL |
| 11 | 2995574 | MAIN BEARING SET STD |
| 12 | 2995575 | MAIN BEAR.SET -0,254 |
| 13 | 2995576 | MAIN BEAR.SET -0,508 |
