F5AE9454H*A002

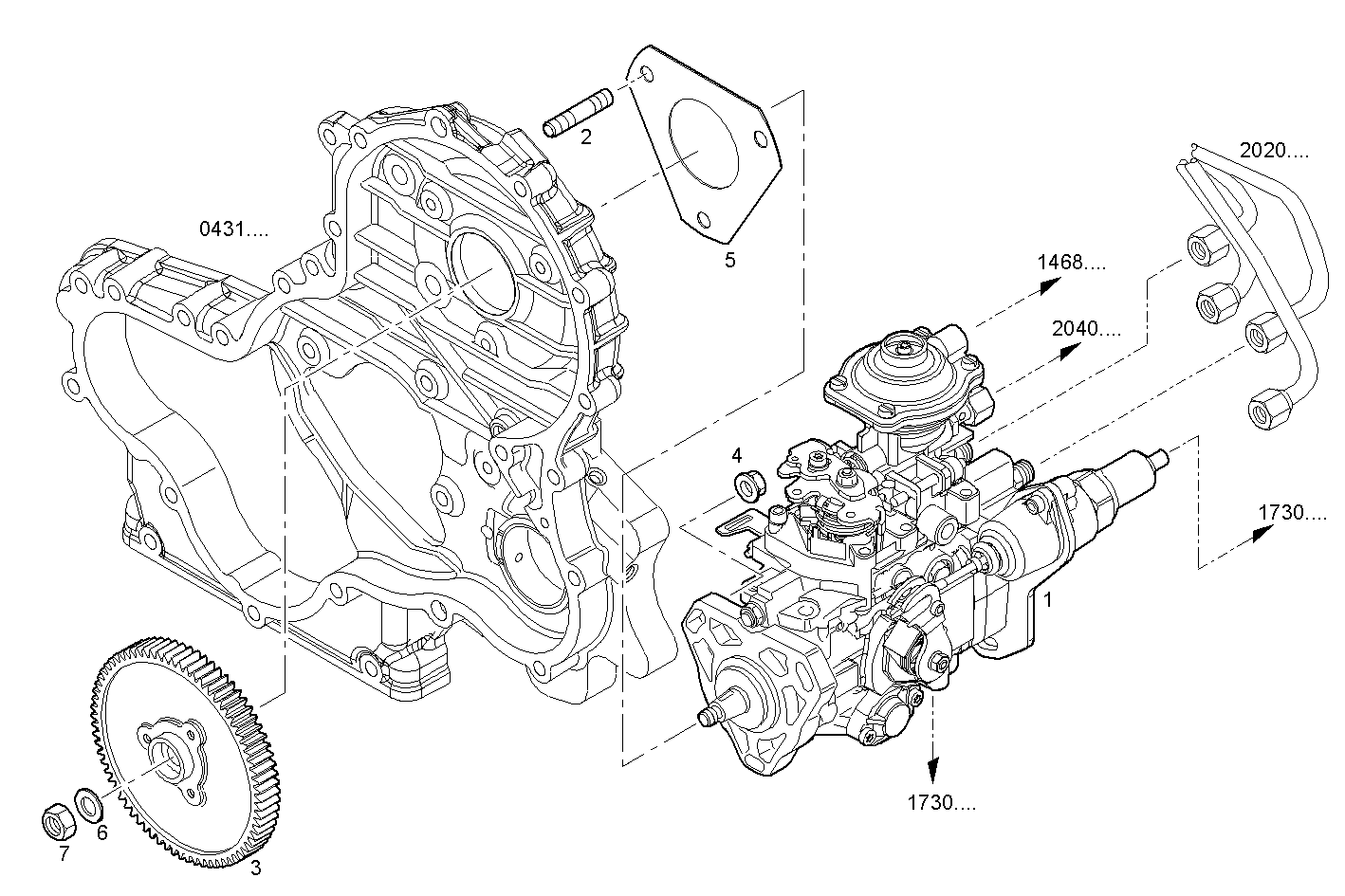

1400.477 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 504348259 | DISTRIB.INJ.PUMP |
2 | 504315405 | STUD M8X30 MM |
3 | 504240405 | INJ.PUMP DRIV.GEA |
4 | 500368408 | NUT M8X1,25 |
5 | 2831123 | FLAT ENGINE GASKET |
6 | 17095401 | WASHER Ø14X24 MM |
7 | 16980331 | NUT M14X1,5 |
