F5AE9484A*A001

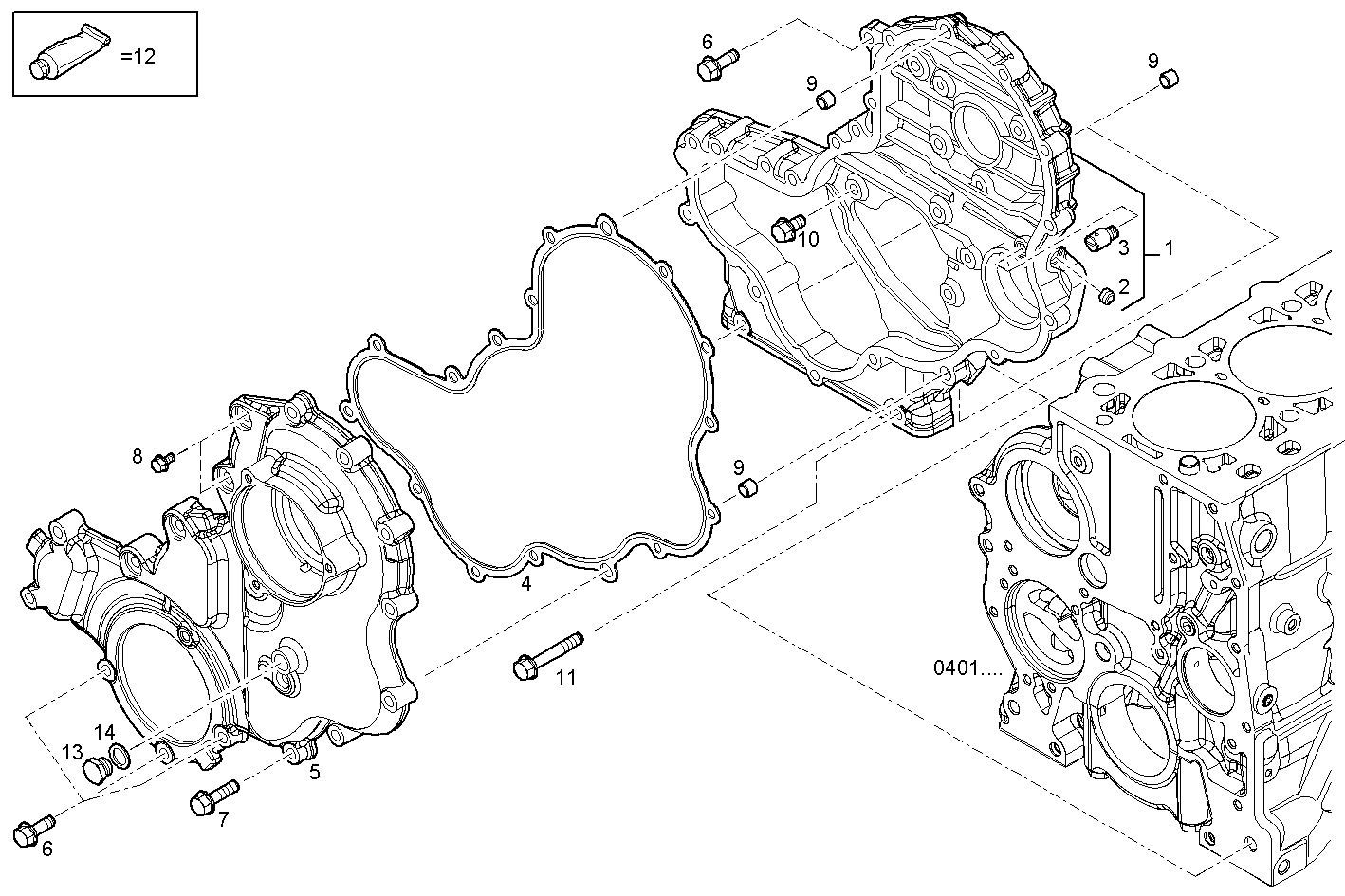

0431.018 FRONT C.CASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 504244657 | TIMINGGEAR HOUSIN |
| 2 | 504051236 | THREADED PLUG DIAM=1/8" |
| 3 | 504204989 | OIL NOZZLE |
| 4 | 504244659 | FLAT ENGINE GASKET |
| 5 | 504244660 | FRONT C.CASE COVER |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 16586625 | HEXAGON BOLT M8X35 MM |
| 8 | 4798845 | SCREW |
| 9 | 99435557 | DOWEL PIN Ø8,5 MM |
| 10 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
| 11 | 16586925 | HEXAGON BOLT M8X50 MM |
| 12 | 2992545 | ADHESIVE/STICKER |
| 13 | 10300611 | LOCK PLUG M14X1,5 |
| 14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
