F5AE9484A*A002

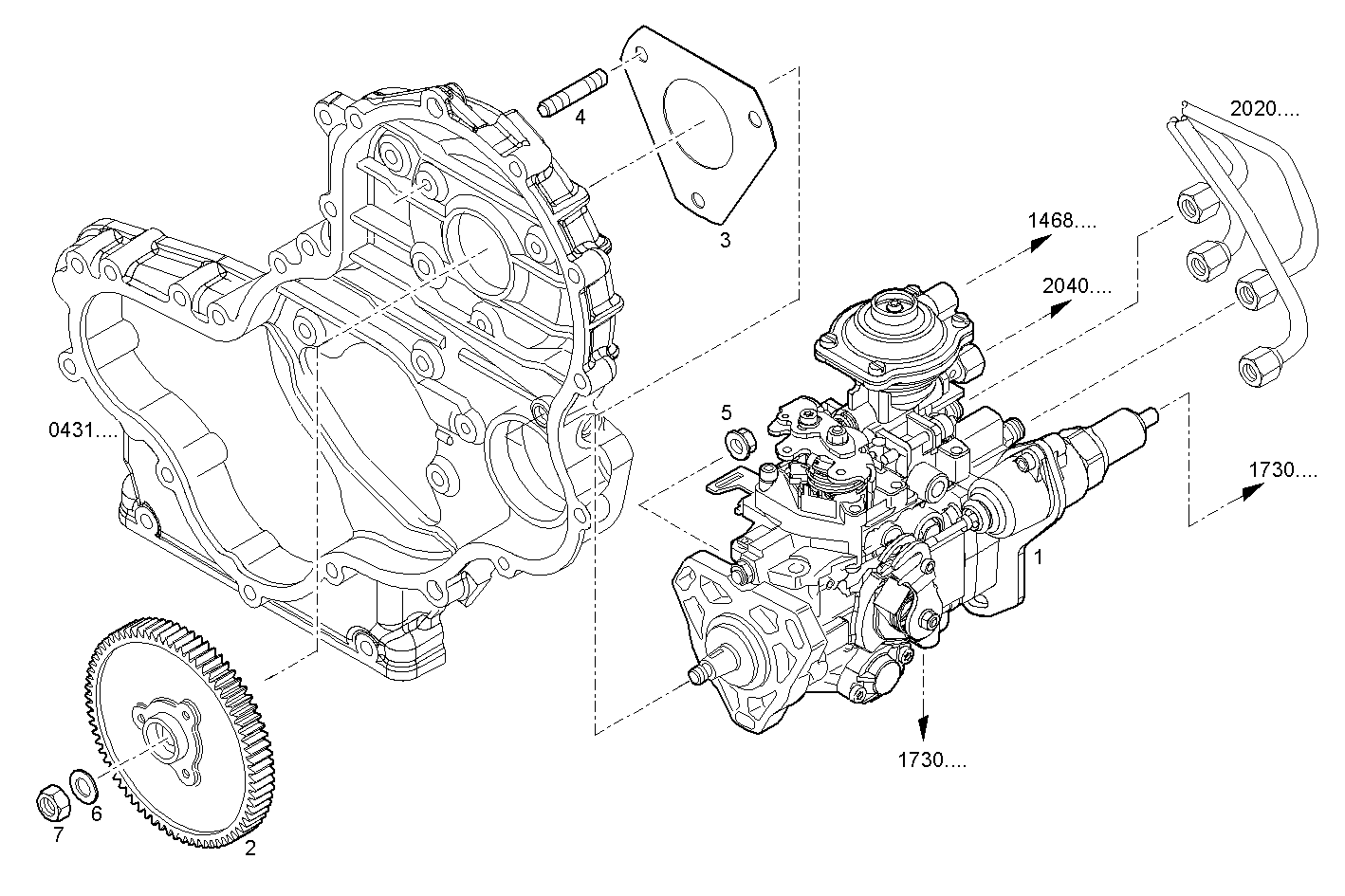

1400.447 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 504246316 DISTRIB.INJ.PUMP
2 504240405 INJ.PUMP DRIV.GEA
3 2831123 FLAT ENGINE GASKET
4 504315405 STUD M8X30 MM
5 500368408 NUT M8X1,25
6 17095404 WASHER Ø14X24 MM
7 16980331 NUT M14X1,5
