F5AE9484B*A004

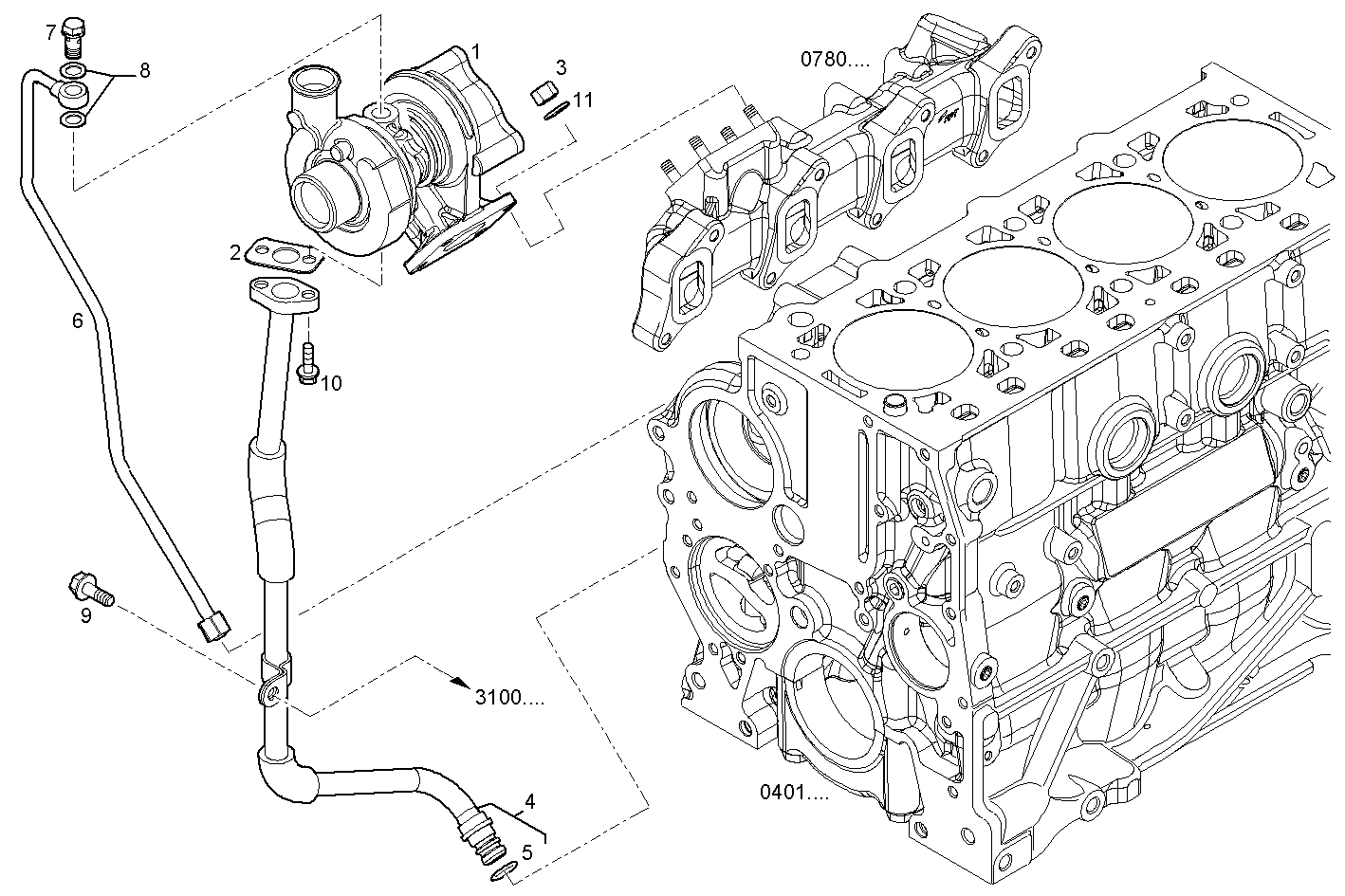

2400.067 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504242763 TURBOCHARGER
2 500370706 FLAT ENGINE GASKET
3 500322677 HEXAGON NUT M8
4 504164226 OIL LINE OUTLET
5 17281681 O-RING Ø13,9 MM SP=2,6 MM
6 504164224 OIL LINE INLET
7 4864080 SCREW CONNECTOR M10X1,25
8 17750480 GASKET [FROM # 376647]
9 16586225 HEXAGON BOLT M8X1,25X16 MM
10 18137825 HEXAGON BOLT M6X16
11 17094914 WASHER 8x16
