F5AE9484G*A004

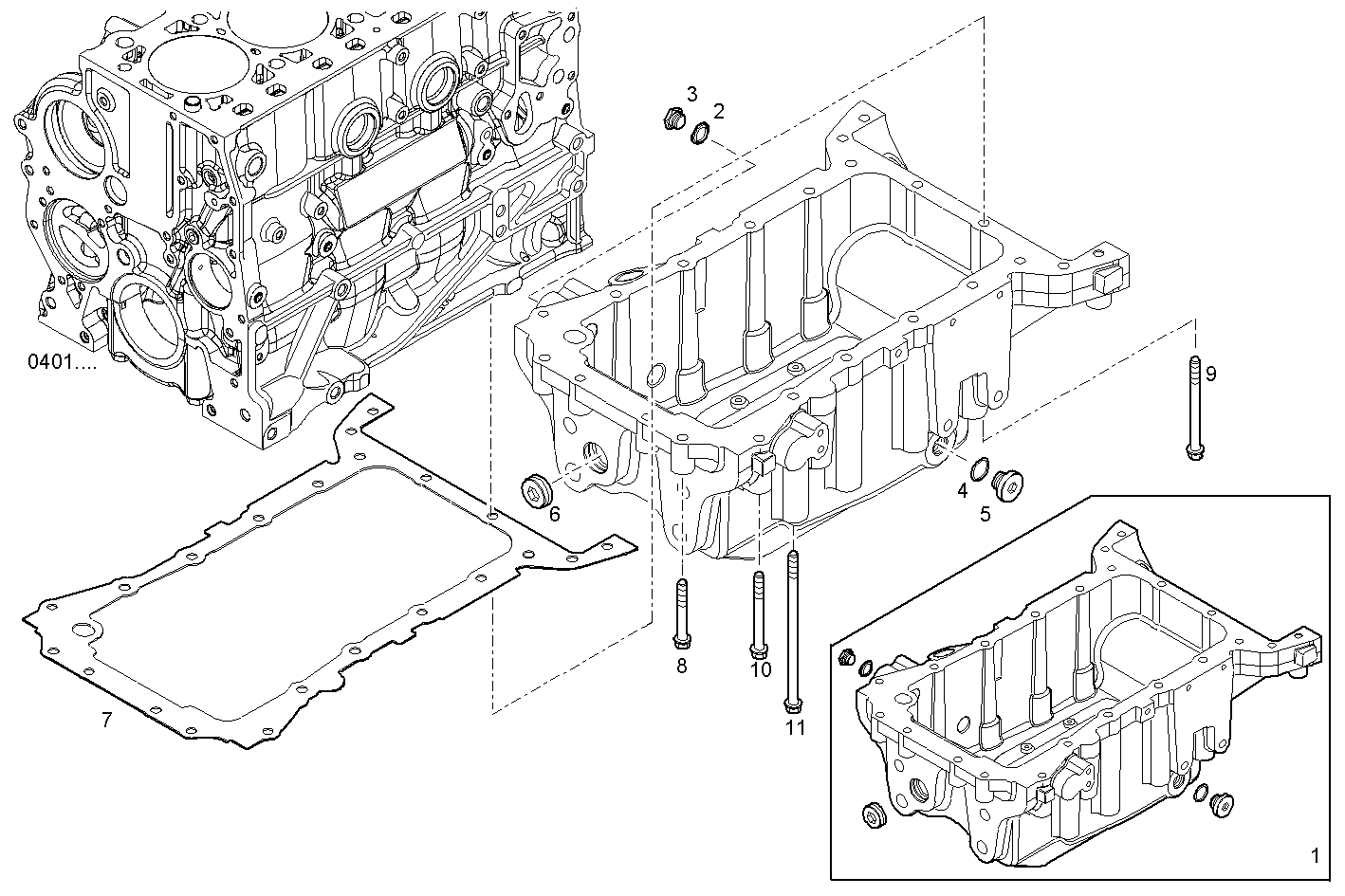

0420.249 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 504248781 OIL SUMP
2 99489019 WASHER Ø16X24 MM SP=1,5 MM
3 16992415 THREADED PLUG M16X1,5
4 17282280 O-RING Ø2,62X23,47 MM
5 4894139 THREADED PLUG M22X1,5
6 16995111 THREADED PLUG M35X1,5
7 504164360 OIL SUMP GASKET
8 16676534 HEXAGON BOLT M10X55 MM
9 16677235 HEXAGON BOLT M10X110 MM
10 16676934 HEXAGON BOLT M10X1,5X80 MM
11 16599434 HEXAGON BOLT
