F5AE9484G*A007

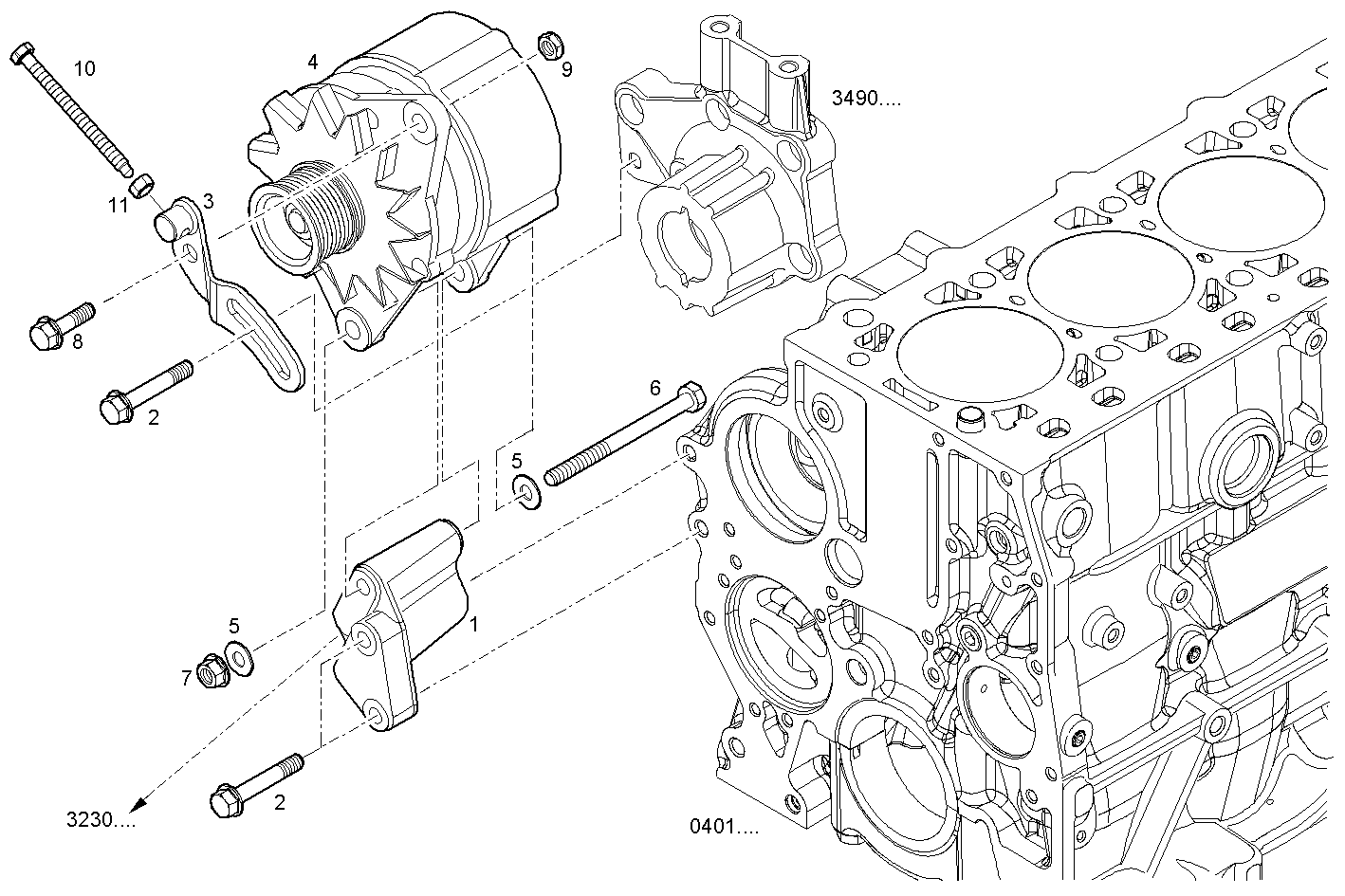

4000.026 GENERATOR

Iveco/FPT GENERATOR

Item Part number Description
1 504340700 GENERATOR SUPPORT
2 16587625 HEXAGON BOLT M10X50 MM
3 504248786 BELT TENSIONER
4 504345414 ALTERNATOR 12 V
5 17095125 WASHER
6 11108821 HEXAGON BOLT M10X130 MM
7 17044825 HEXAGON NUT M10
8 16675835 HEXAGON BOLT M10X30 MM
9 17971835 HEXAGON NUT M10
10 504302206 HEXAGON BOLT
11 17037925 HEXAGON NUT M8X1,25
