Catalogue Menu
F5CE5454B*A002

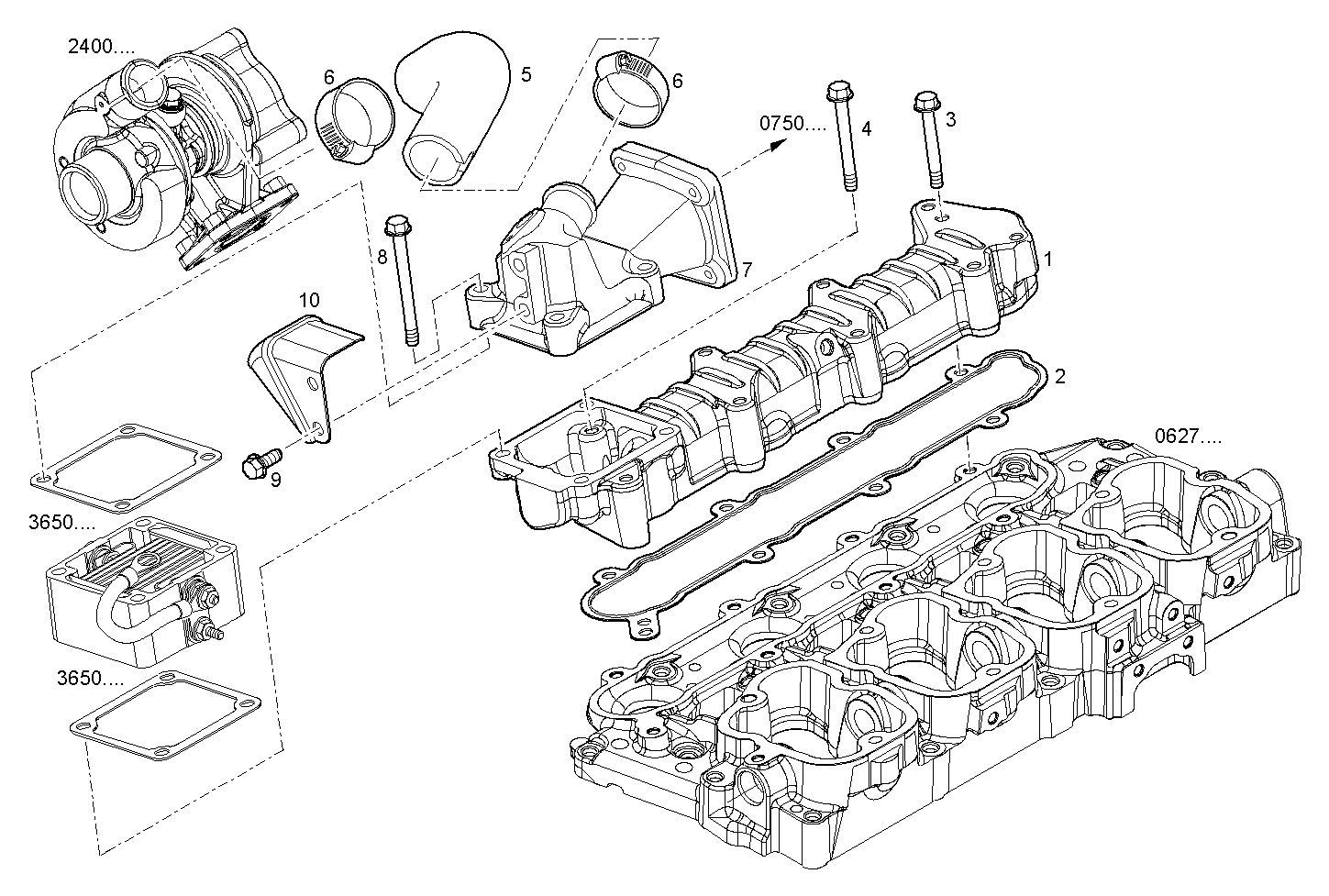

0710.245 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504194598 | INTAKE ELBOW |
| 2 | 504171144 | INTAKE ELBOW GASK. |
| 3 | 16592324 | HEXAGON BOLT M8X60 MM |
| 4 | 16592224 | HEXAGON BOLT M8X55 MM |
| 5 | 504249196 | RUBBER SLEEVE |
| 6 | 4899693 | CLIP |
| 7 | 504249195 | AIR PIPE/DUCT |
| 8 | 16598224 | HEXAGON BOLT M8X90 MM |
| 9 | 16597925 | HEXAGON BOLT M8X14 MM |
| 10 | 504283235 | PROTECTION |
