F5CE9454C*A001

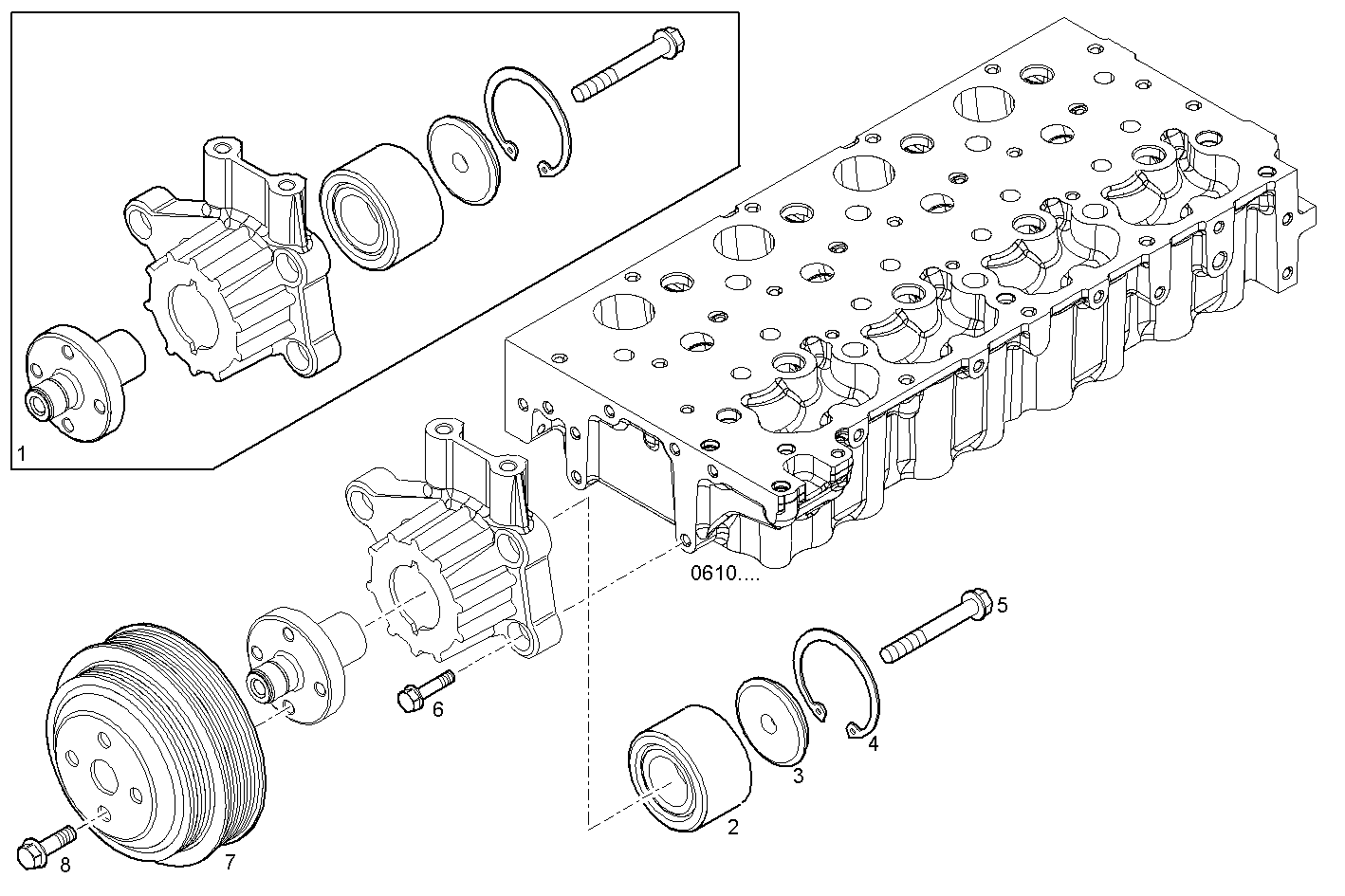

3490.006 FAN SUPPORT

Iveco/FPT FAN SUPPORT

Item Part number Description
1 504255373 SUPPORT
2 4892732 BALL BEARING
3 4890732 WASHER
4 500395697 SPRING LOCKWASHER
5 16592824 HEXAGON BOLT M10X70 MM
6 16586524 HEXAGON BOLT M8X30 MM
7 504255370 PULLEY
8 16587024 HEXAGON BOLT M10X20 MM
