F5CE9454E*A002

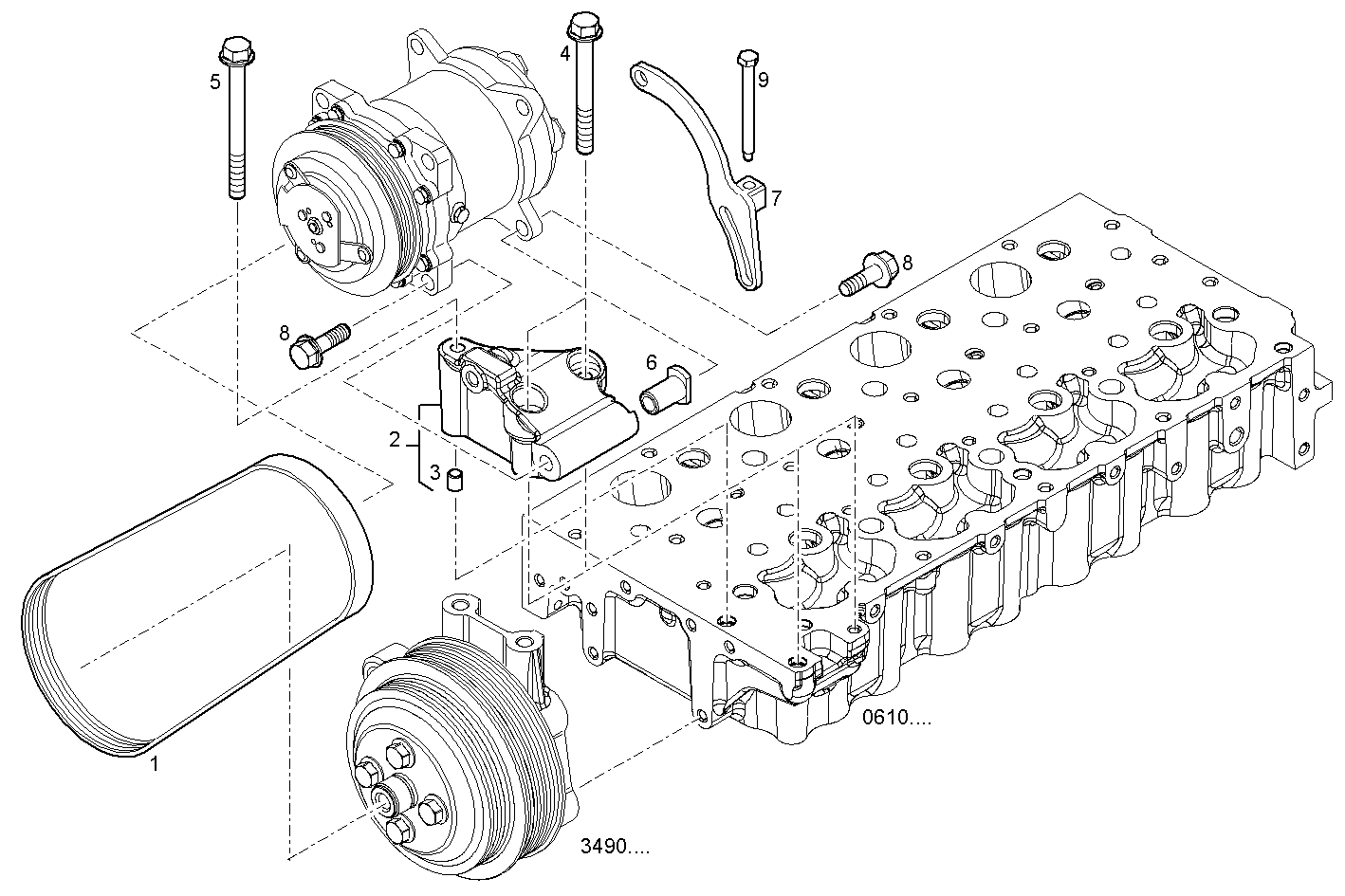

8600.275 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504223518 | V-BELT |
| 2 | 504252081 | SUPPORT |
| 3 | 99435557 | DOWEL PIN Ø8,5 MM |
| 4 | 16592324 | HEXAGON BOLT M8X60 MM |
| 5 | 16592621 | SCREW M8X80 MM |
| 6 | 98431043 | BUSH |
| 7 | 504252077 | TENSIONER |
| 8 | 16587224 | HEXAGON BOLT M10X30 MM |
| 9 | 504010032 | SCREW |
