F5CE9454E*A003

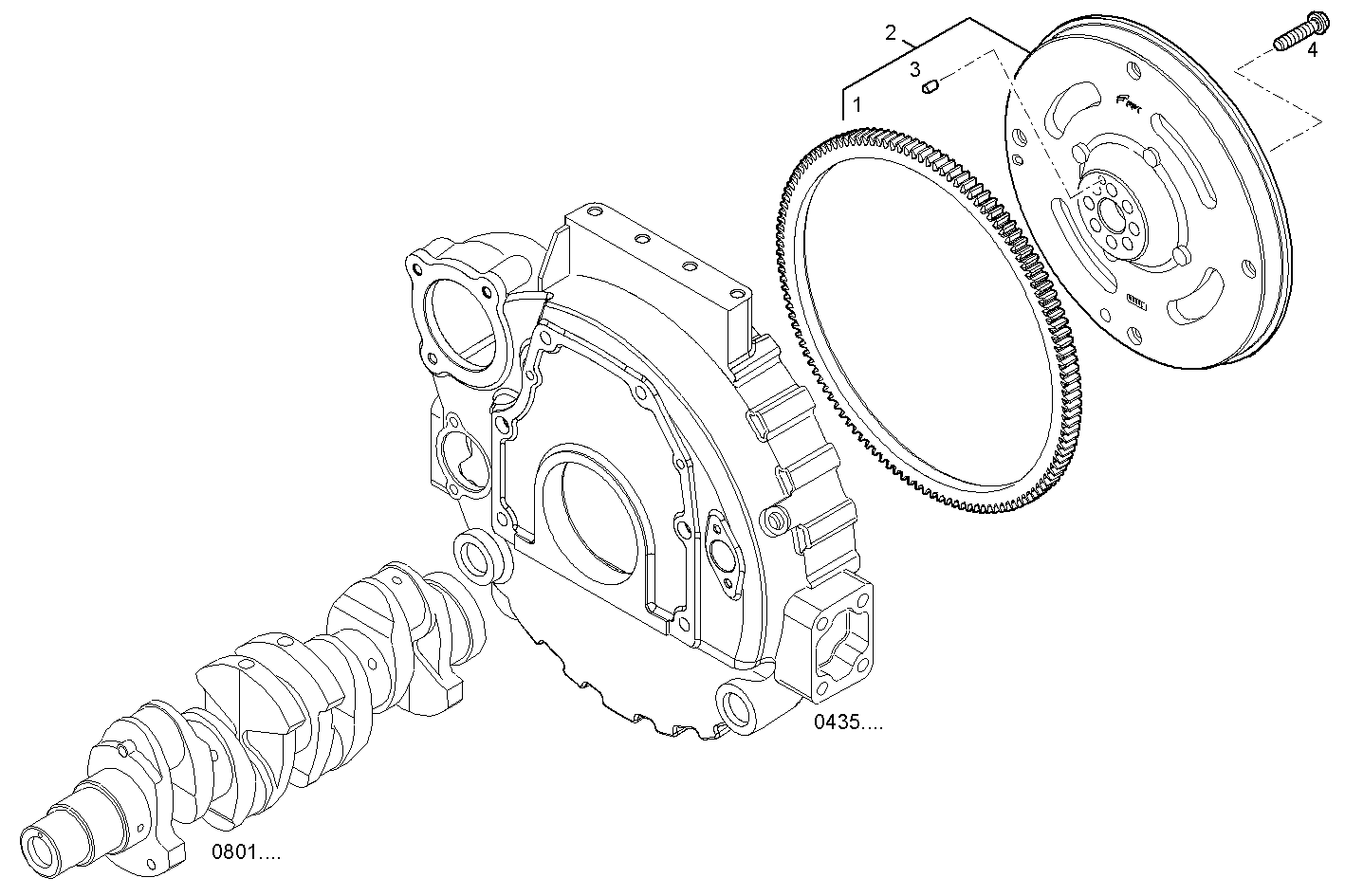

0830.312 ENGINE FLYWHEEL
| Item | Part number | Description |
|---|---|---|
| 1 | 504062460 | RING GEAR |
| 2 | 504262586 | FLYWHEEL ASSY |
| 3 | 17275410 | DOWEL PIN Ø8 MM |
| 4 | 500347046 | HEXAGON BOLT M12X1,25 |
| Item | Part number | Description |
|---|---|---|
| 1 | 504062460 | RING GEAR |
| 2 | 504262586 | FLYWHEEL ASSY |
| 3 | 17275410 | DOWEL PIN Ø8 MM |
| 4 | 500347046 | HEXAGON BOLT M12X1,25 |
