F5CE9454E*A005

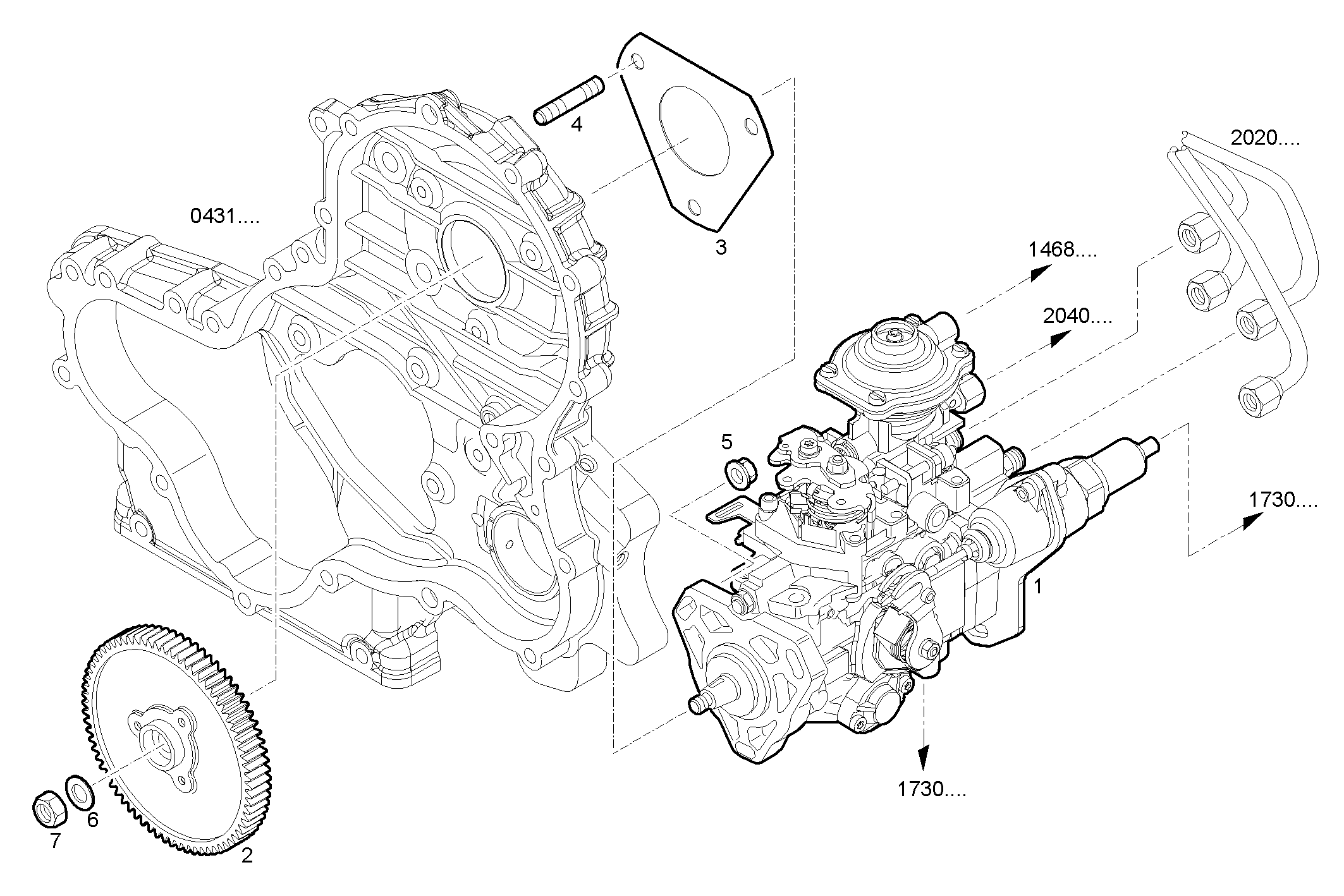

1400.057 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 504303916 INLINE INJECT.PUMP
2 504240405 INJ.PUMP DRIV.GEA
3 504083433 FLAT ENGINE GASKET
4 504315405 STUD M8X30 MM
5 500368408 NUT M8X1,25
6 17095401 WASHER Ø14X24 MM
7 16980331 NUT M14X1,5
