F5CE9459B*A001

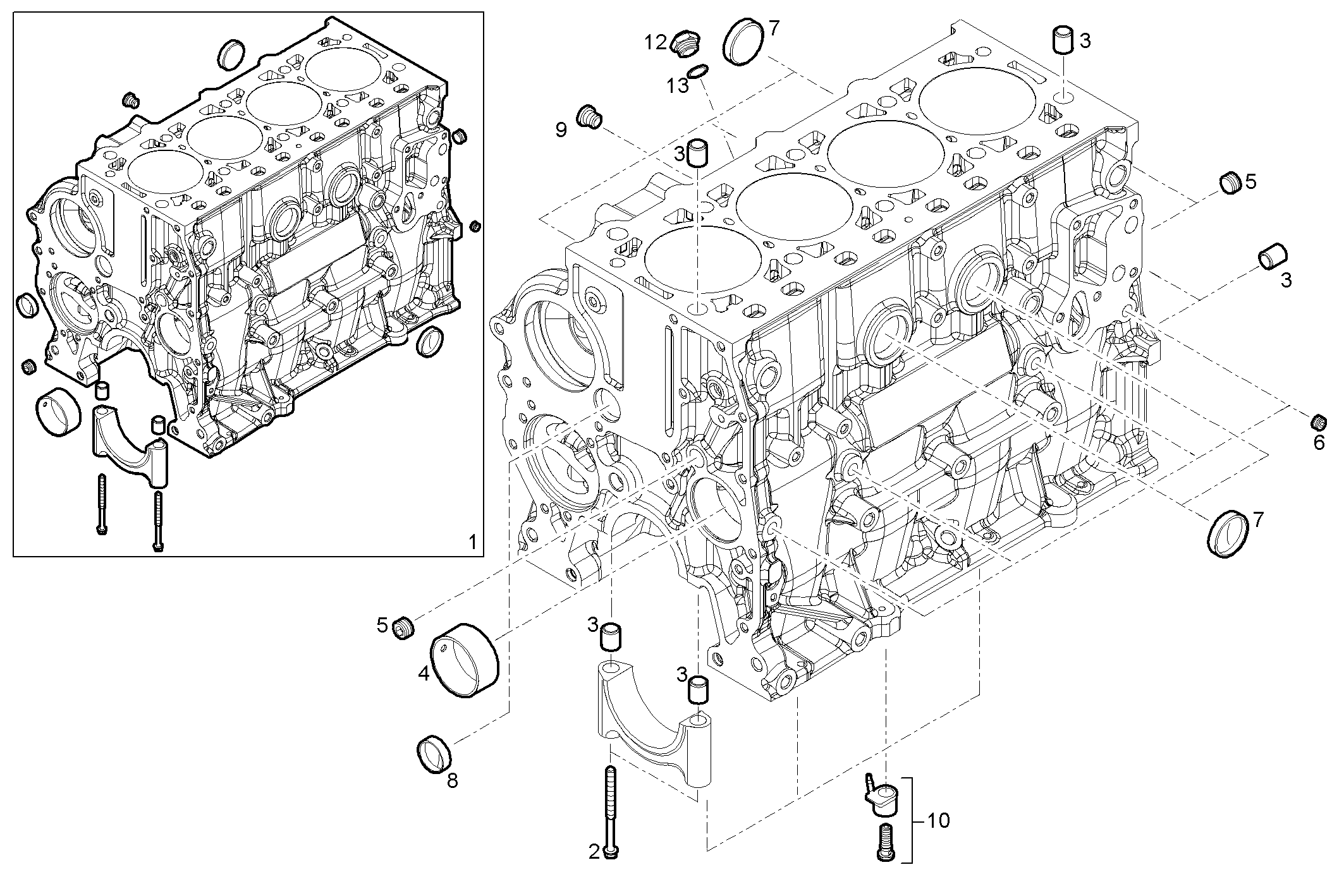

0401.032 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 504189766 | CRANKCASE |
| 2 | 4891353 | HEXAGON BOLT M12X120 MM |
| 3 | 7300019 | DOWEL PIN |
| 4 | 4895040 | CAMSHAFT BEARING |
| 5 | 504051238 | THREADED PLUG DIAM=3/8" |
| 6 | 504051236 | THREADED PLUG DIAM=1/8" |
| 7 | 16989101 | LOCK PLUG Ø40 MM |
| 8 | 16988701 | LOCK PLUG Ø30 MM |
| 9 | 504016052 | LOCK PLUG M14X1,5 |
| 10 | 504156515 | OIL NOZZLE |
| 12 | 504356829 | THREADED UNION M14X1,5 |
| 13 | 504077652 | WASHER |
