F5CE9459B*A001

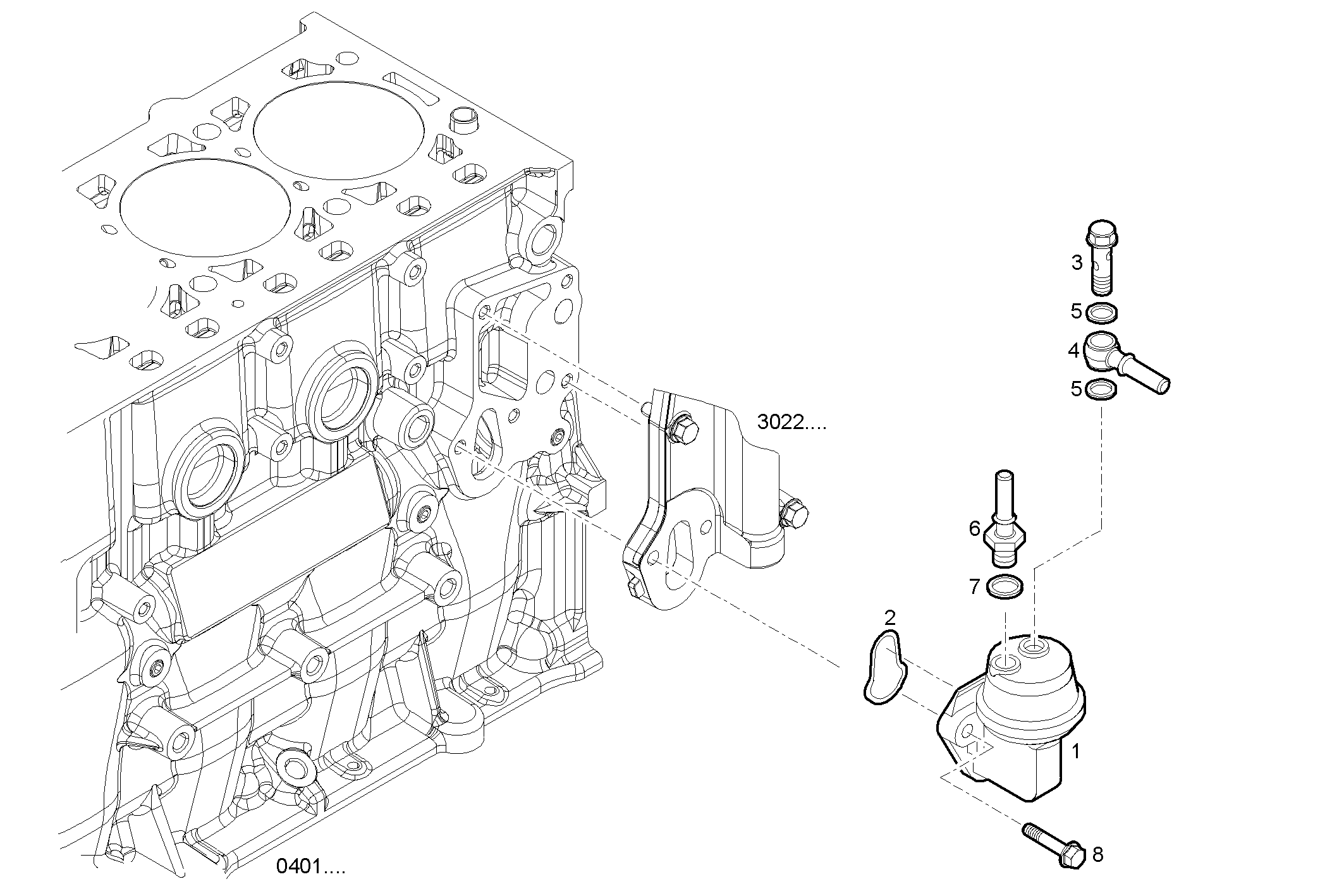

2010.066 FUEL PUMP
Item | Part number | Description |
---|---|---|
1 | 2830122 | FUEL PUMP |
2 | 2830156 | O-RING |
3 | 504218933 | SCREW CONNECTOR |
4 | 504218931 | BANJO COUPLING |
5 | 17750480 | GASKET [FROM # 376647] |
6 | 504197289 | PIPE SOCKET |
7 | 4894721 | WASHER |
8 | 16586724 | SCREW M8X1,25X40 MM |
