F5CE9459B*A001

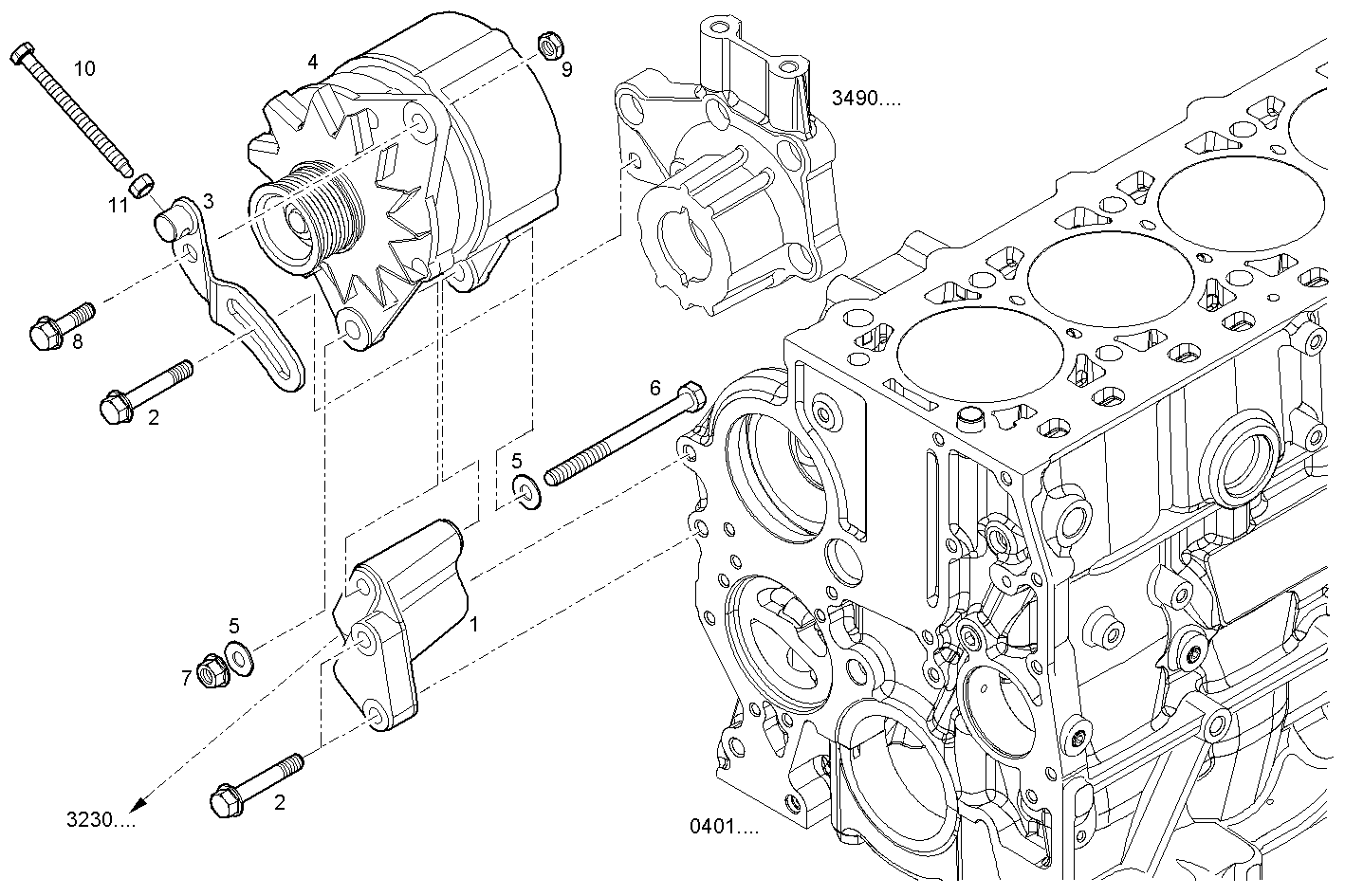

4000.214 GENERATOR
Item | Part number | Description |
---|---|---|
1 | 504248175 | GENERATOR SUPPORT |
2 | 16587625 | HEXAGON BOLT M10X50 MM |
3 | 504248786 | BELT TENSIONER |
4 | 504271462 | ALTERNATOR ASSY |
5 | 17097124 | WASHER 10x21 |
6 | 11108821 | HEXAGON BOLT M10X130 MM |
7 | 17044825 | HEXAGON NUT M10 |
8 | 16675835 | HEXAGON BOLT M10X30 MM |
9 | 17971835 | HEXAGON NUT M10 |
10 | 504302206 | HEXAGON BOLT |
11 | 17037921 | HEXAGON NUT M8X1,25 |
11 | 17038021 | HEXAGON NUT M8X1 |
