F5CE9484B*A002

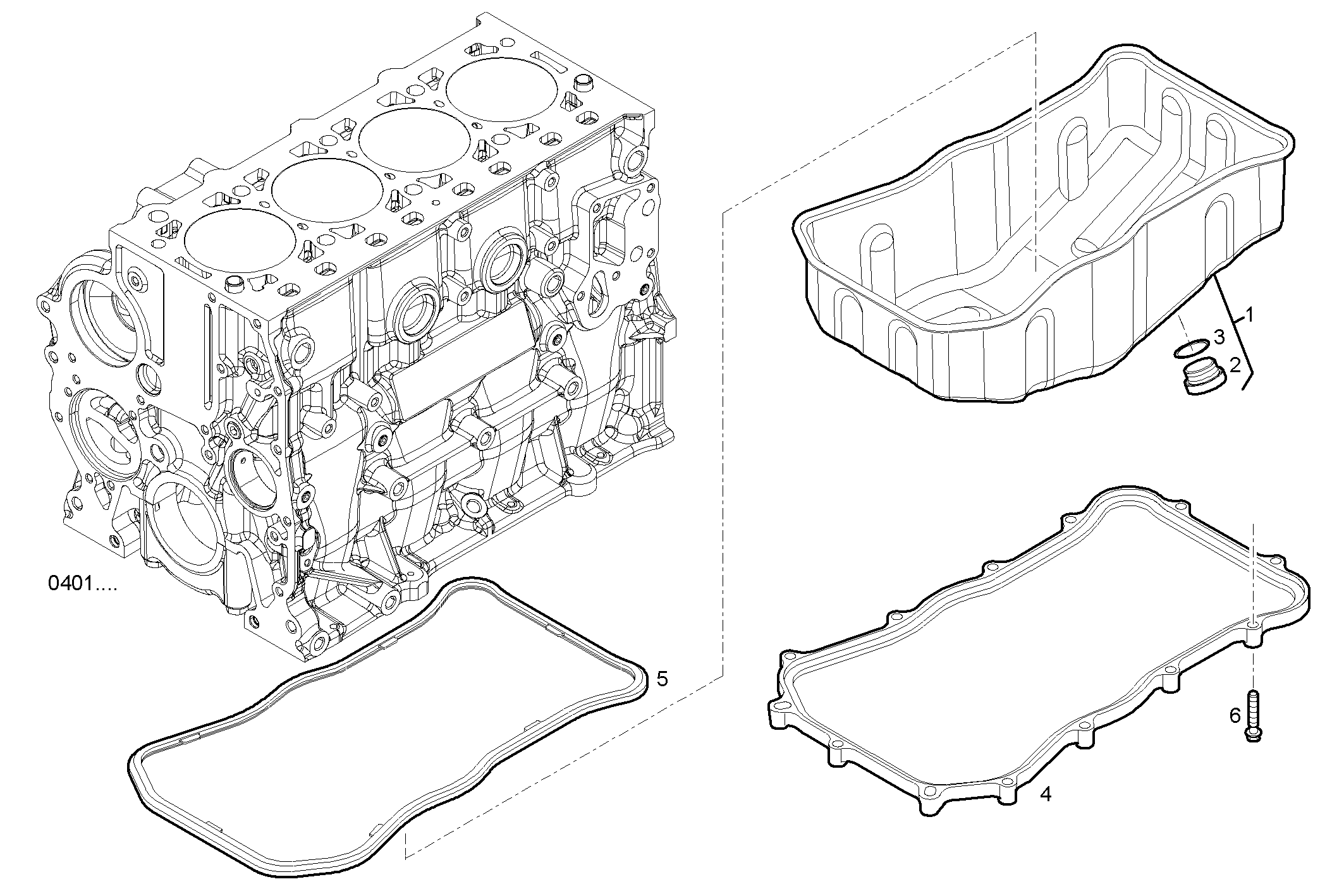

0420.253 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504288472 | OIL SUMP |
| 2 | 4894139 | THREADED PLUG M22X1,5 |
| 3 | 4895584 | O-RING |
| 4 | 504179442 | SPACING BAR |
| 5 | 504179443 | OIL SUMP GASKET |
| 6 | 16586625 | HEXAGON BOLT M8X35 MM |
