F5CE9484B*A002

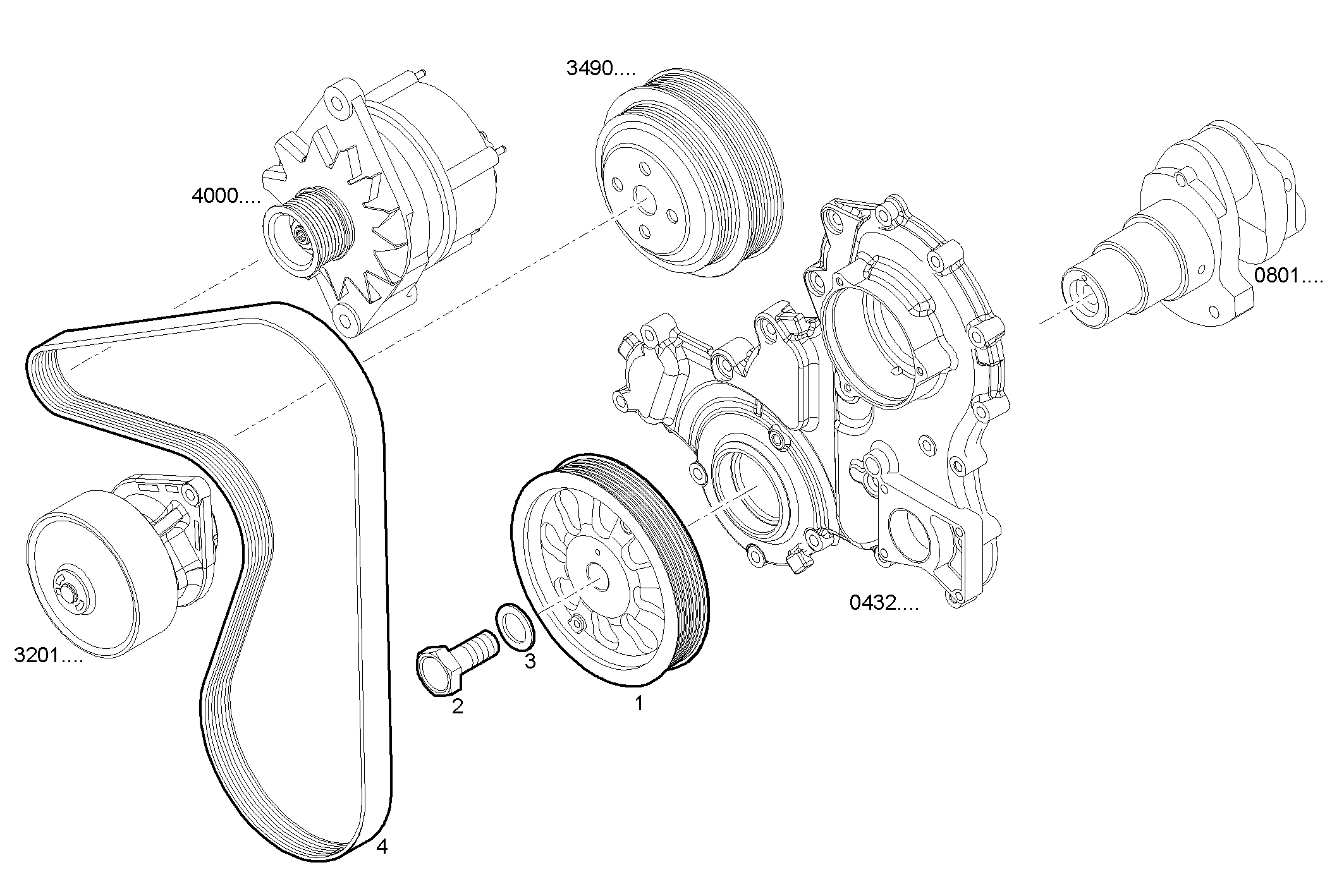

0843.030 DRIVING PULLEY
| Item | Part number | Description |
|---|---|---|
| 1 | 504273736 | CRANKSHAFT PULLEY |
| 2 | 98419203 | SCREW M20X1,5X58 MM |
| 3 | 17092874 | SPRING WASHER |
| 4 | 504213623 | V-BELT |
| Item | Part number | Description |
|---|---|---|
| 1 | 504273736 | CRANKSHAFT PULLEY |
| 2 | 98419203 | SCREW M20X1,5X58 MM |
| 3 | 17092874 | SPRING WASHER |
| 4 | 504213623 | V-BELT |
