F5CE9484E*A001

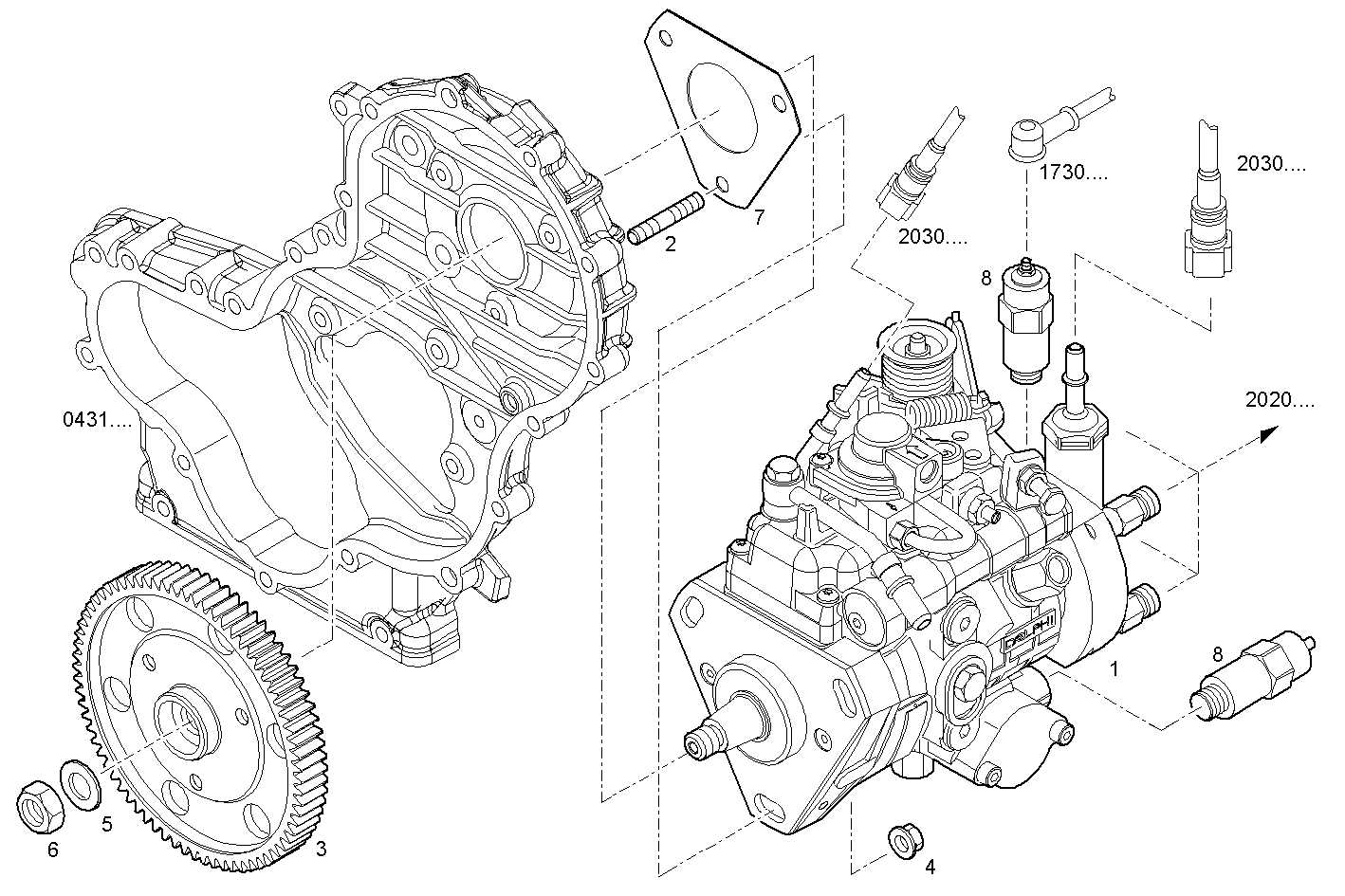

1400.067 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504290012 | DISTRIB.INJ.PUMP |
| 2 | 504315405 | STUD M8X30 MM |
| 3 | 504240405 | INJ.PUMP DRIV.GEA |
| 4 | 500368408 | NUT M8X1,25 |
| 5 | 17095401 | WASHER Ø14X24 MM |
| 6 | 16980331 | NUT M14X1,5 |
| 7 | 504083433 | FLAT ENGINE GASKET |
| 8 | 8052072 | ELECTROVALVE 12 V |
