F5CE9484E*A001

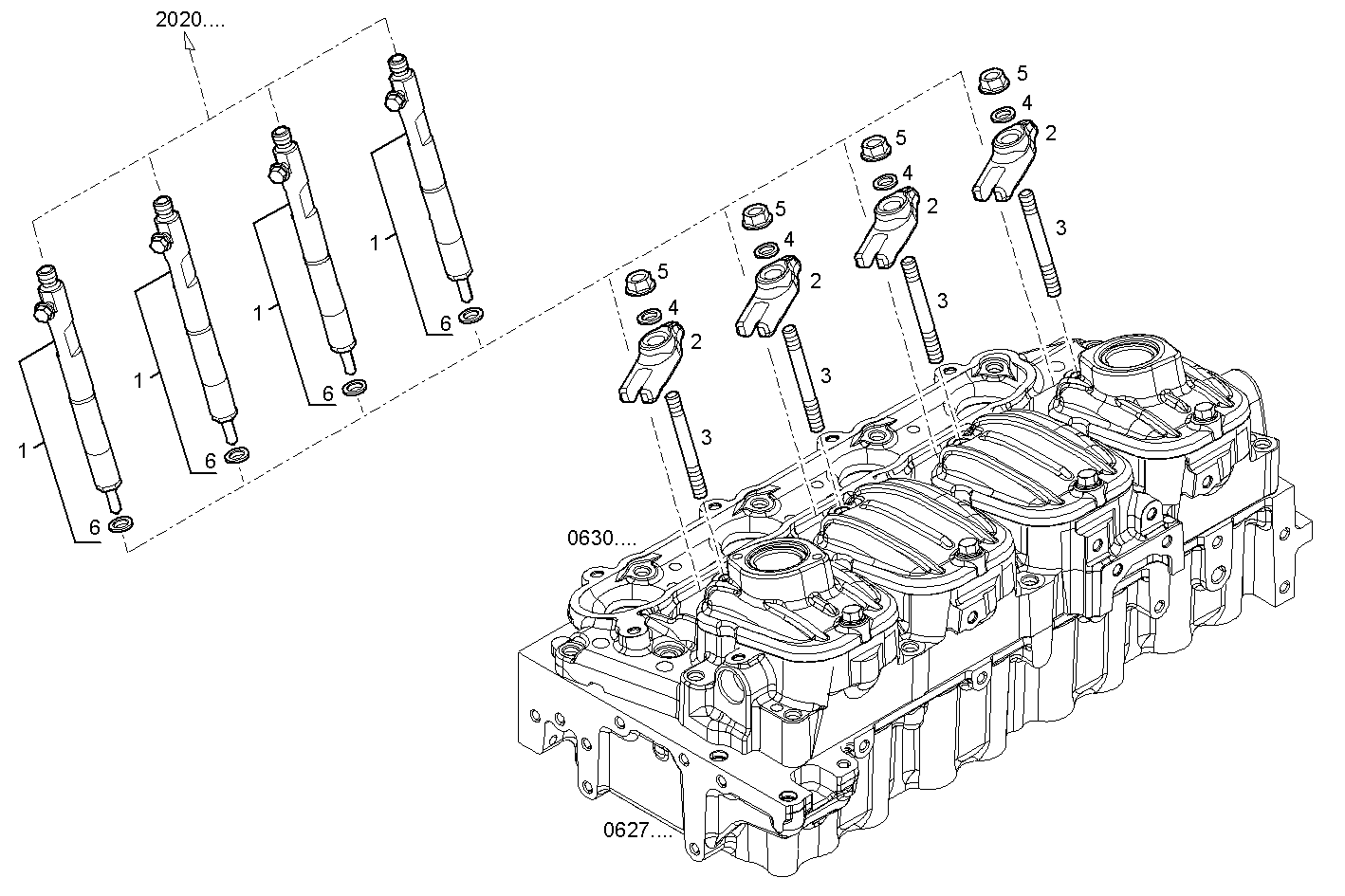

1480.056 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 504330479 | NOZZLE |
| 2 | 504174745 | FASTENING BRACKET |
| 3 | 504315404 | STUD M8X16X60 MM |
| 4 | 500353601 | WASHER |
| 5 | 17044731 | HEXAGON NUT M8 |
| 6 | 4899689 | WASHER |
