FVAE2884A*B200

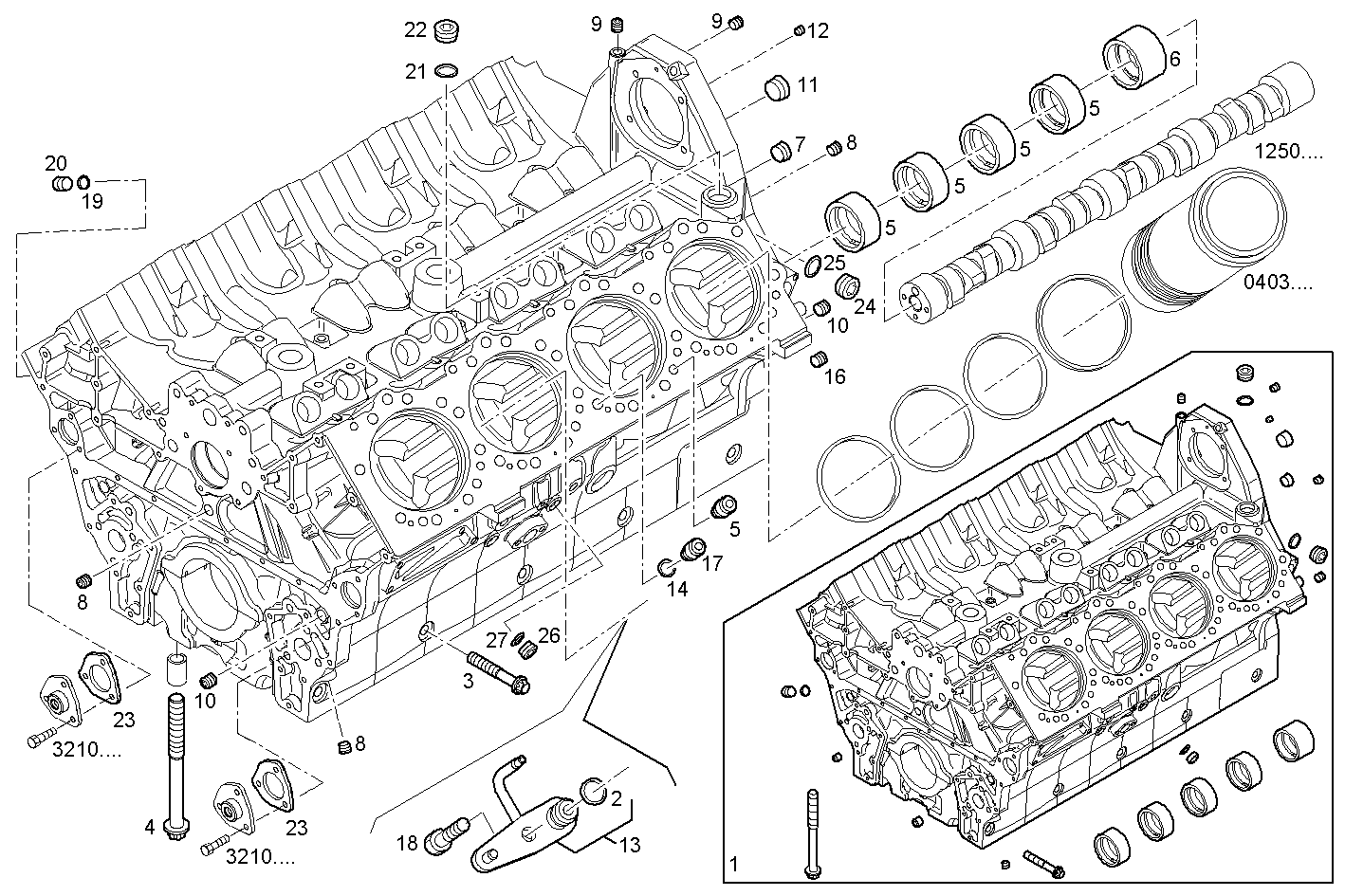

0401.048 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 504116336 | CRANKCASE ASSY |
| 2 | 17278081 | O-RING Ø10,82X1,78 MM |
| 3 | 504030440 | HEXAGON BOLT |
| 4 | 504116246 | CRAHKSFT.BEAR.STUD |
| 5 | 504029407 | CAMSHAFT BEARING |
| 6 | 504029406 | CAMSHAFT BEARING |
| 7 | 98475100 | THREADED PLUG R3/4x12 |
| 8 | 504051237 | THREADED PLUG DIAM=1/4" |
| 9 | 504051236 | THREADED PLUG DIAM=1/8" |
| 10 | 504051238 | THREADED PLUG DIAM=3/8" |
| 11 | 16995111 | THREADED PLUG M35X1,5 |
| 12 | 504036758 | SCREW |
| 13 | 504034779 | OIL NOZZLE |
| 14 | 17277981 | O-RING 1,78x9,25 |
| 15 | 17275610 | DOWEL PIN |
| 16 | 10838010 | DOWEL PIN Ø16 MM |
| 17 | 4671990 | DOWEL PIN |
| 18 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 19 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 20 | 16993315 | THREADED PLUG |
| 21 | 99469380 | SEAL GASKET Ø35 MM |
| 22 | 16993715 | THREADED PLUG |
| 23 | 504045914 | FLAT ENGINE GASKET |
