FVAE2884A*B200

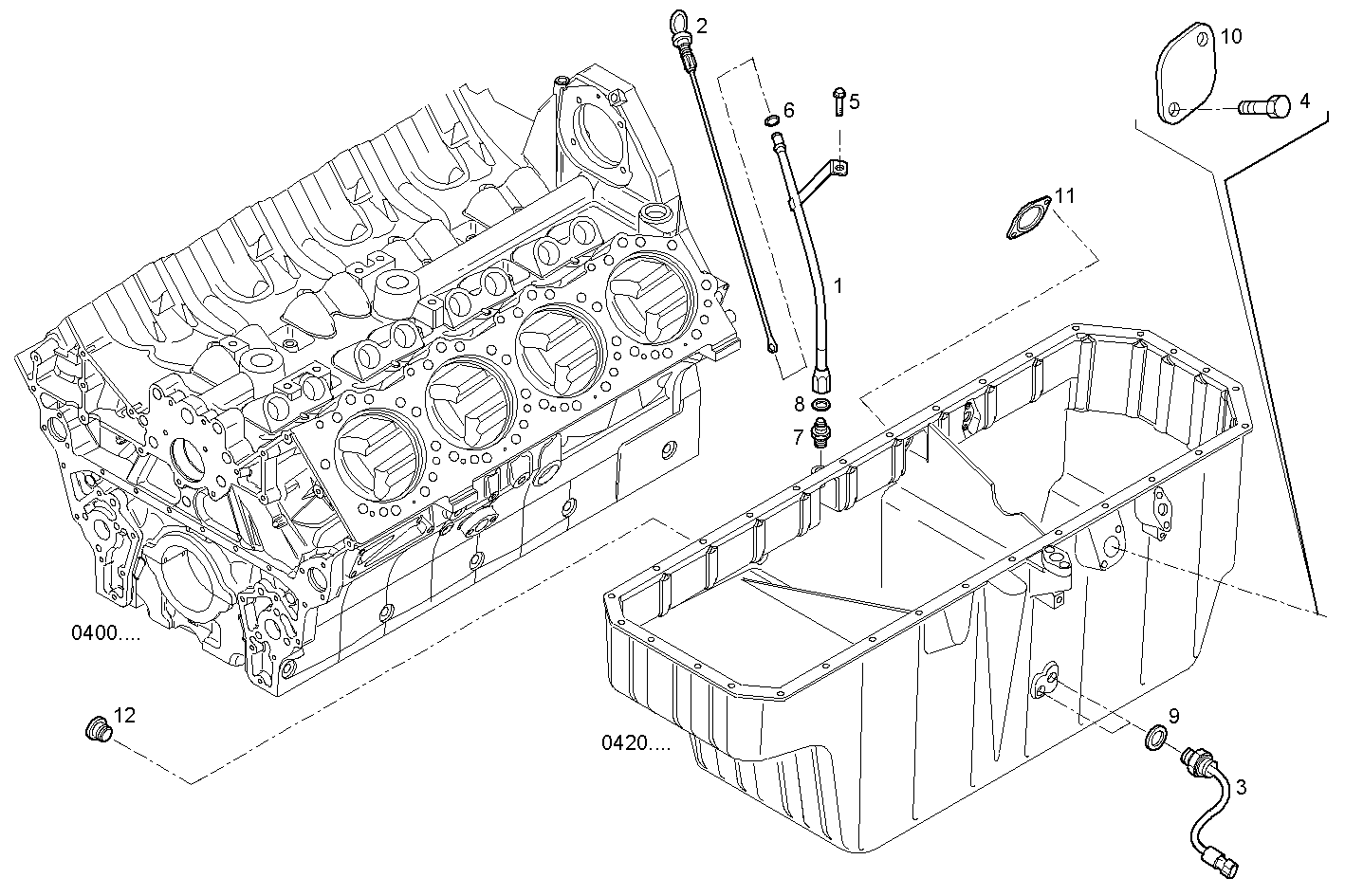

2700.009 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504090255 | OIL LEVEL TUBE |
| 2 | 504090253 | OIL DIPSTICK |
| 3 | 504055244 | SENSOR |
| 4 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 5 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 6 | 17281981 | O-RING Ø18,7 MM SP=2,6 MM |
| 7 | 504087366 | THREADED UNION |
| 8 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 9 | 504069933 | SEAL GASKET Ø19,18X2,46 MM |
| 10 | 504069978 | COVER |
| 11 | 504064628 | GASKET |
| 12 | 504097424 | THREADED PLUG |
