FVAE2884A*B200

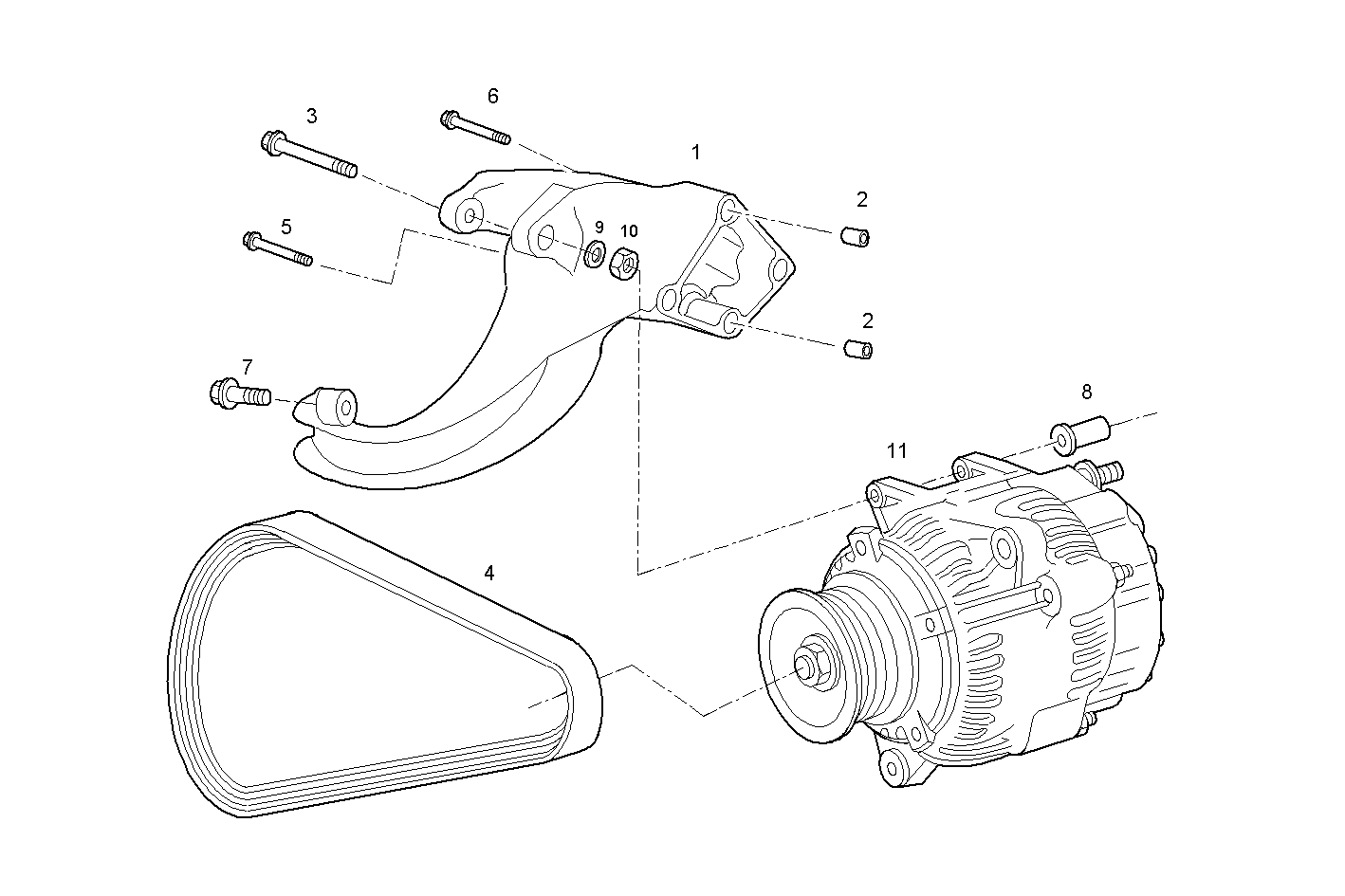

4000.172 GENERATOR

Iveco/FPT GENERATOR

Item Part number Description
1 504119901 GENERATOR SUPPORT
2 98405462 DOWEL PIN Ø10,2 MM
3 99474161 SCREW M10
4 504090128 ALTERNATOR BELT
5 16676635 HEXAGON BOLT M10X60 MM
6 16677035 HEXAGON BOLT M10X90 MM
7 16586925 HEXAGON BOLT M8X50 MM
8 99484032 SPACER BUSH
9 17097124 WASHER 10x21
10 17038131 HEXAGON NUT M10
11 504109413 ALTERNATOR
